GMLAN High Speed Serial Data (1 of 2)

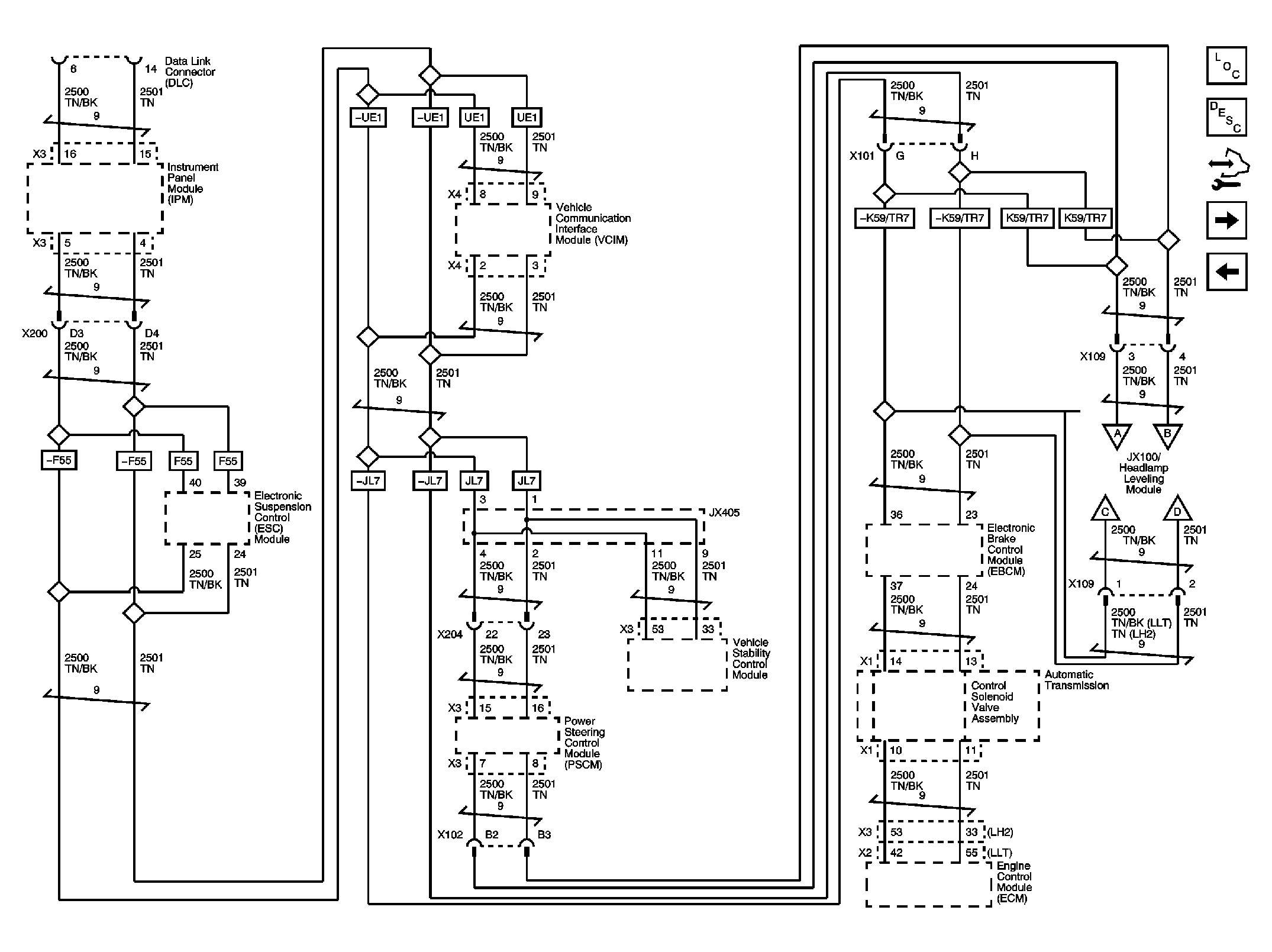

Fig 1: GMLAN High Speed Serial Data Wiring Schematic (1 of 2)
GM2410555Courtesy of GENERAL MOTORS COMPANY
