GMLAN High Speed Serial Data (2 of 2)

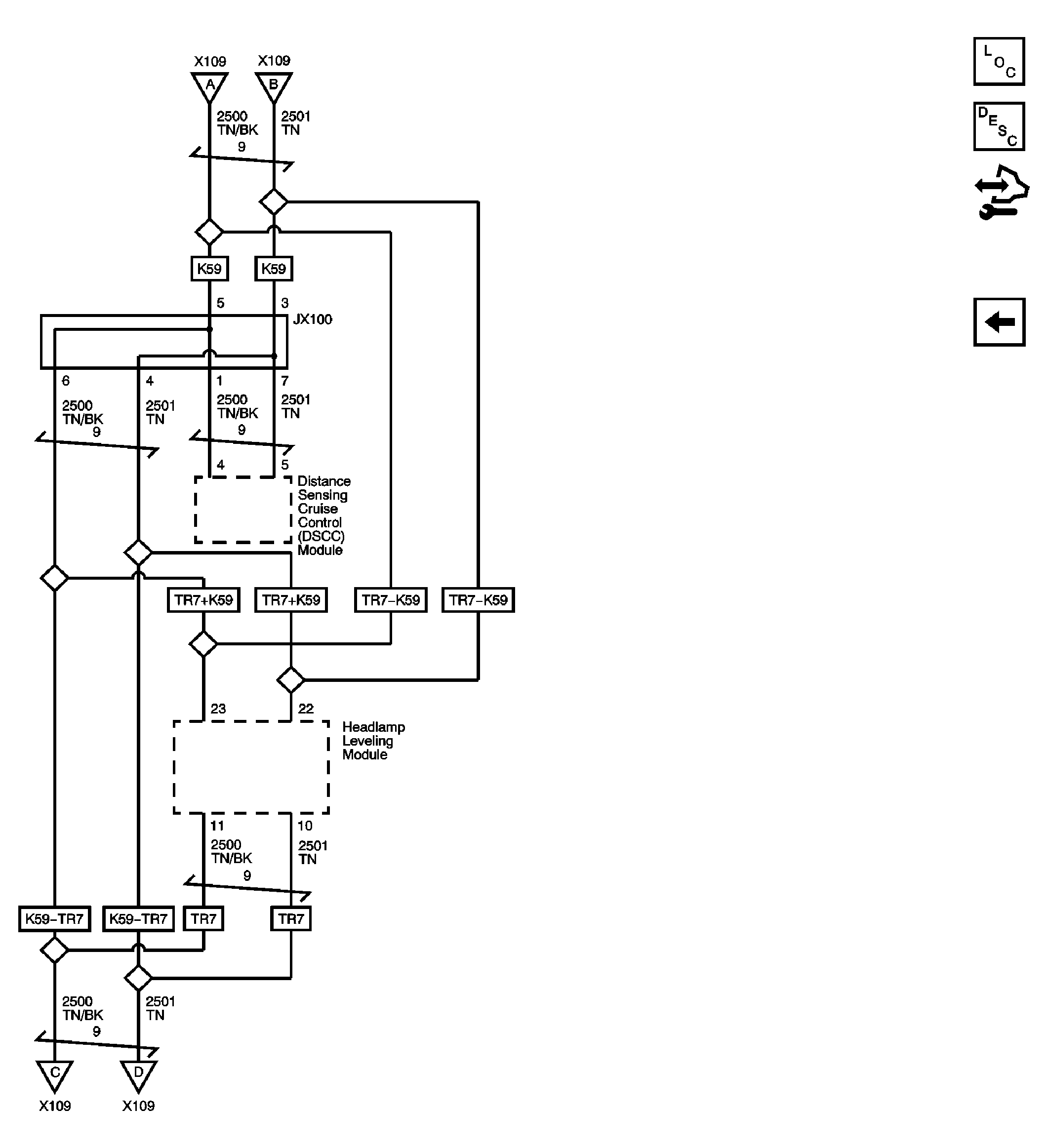

Fig 1: GMLAN High Speed Serial Data Wiring Schematic (2 of 2)
GM2410556Courtesy of GENERAL MOTORS COMPANY
