Cruise Control Switch Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

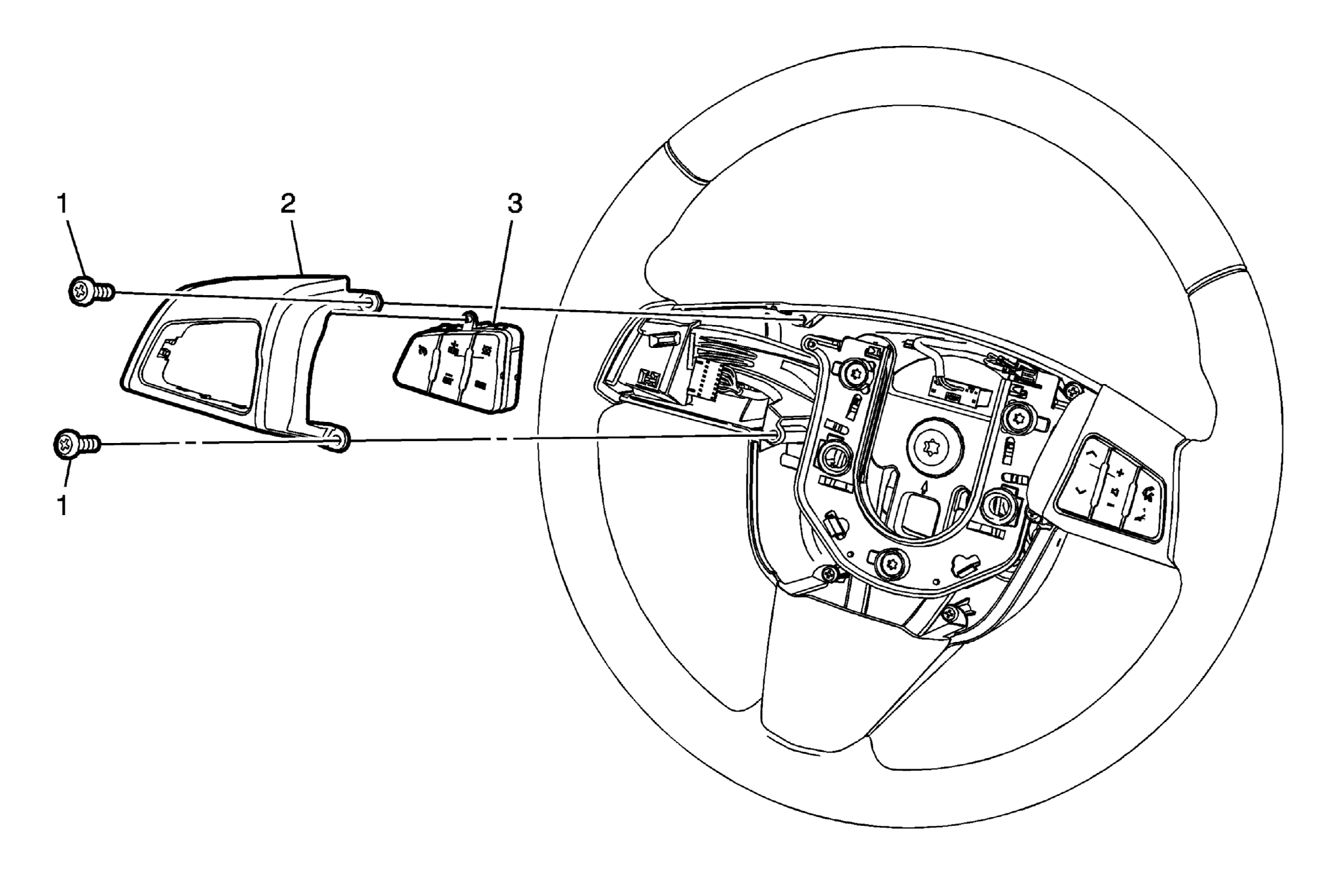

Fig 1: Identifying Cruise Control Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedure: Remove the inflatable restraint steering wheel module. Refer to Steering Wheel Inflatable Restraint Module Replacement .
1	Cruise Control Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (18 lb in)
2	Cruise Control Cover
3	Cruise Control Switch Procedure Disconnect the electrical connectors. Make sure the steering wheel control switches are properly seated to the steering wheel trim cover during installation.
