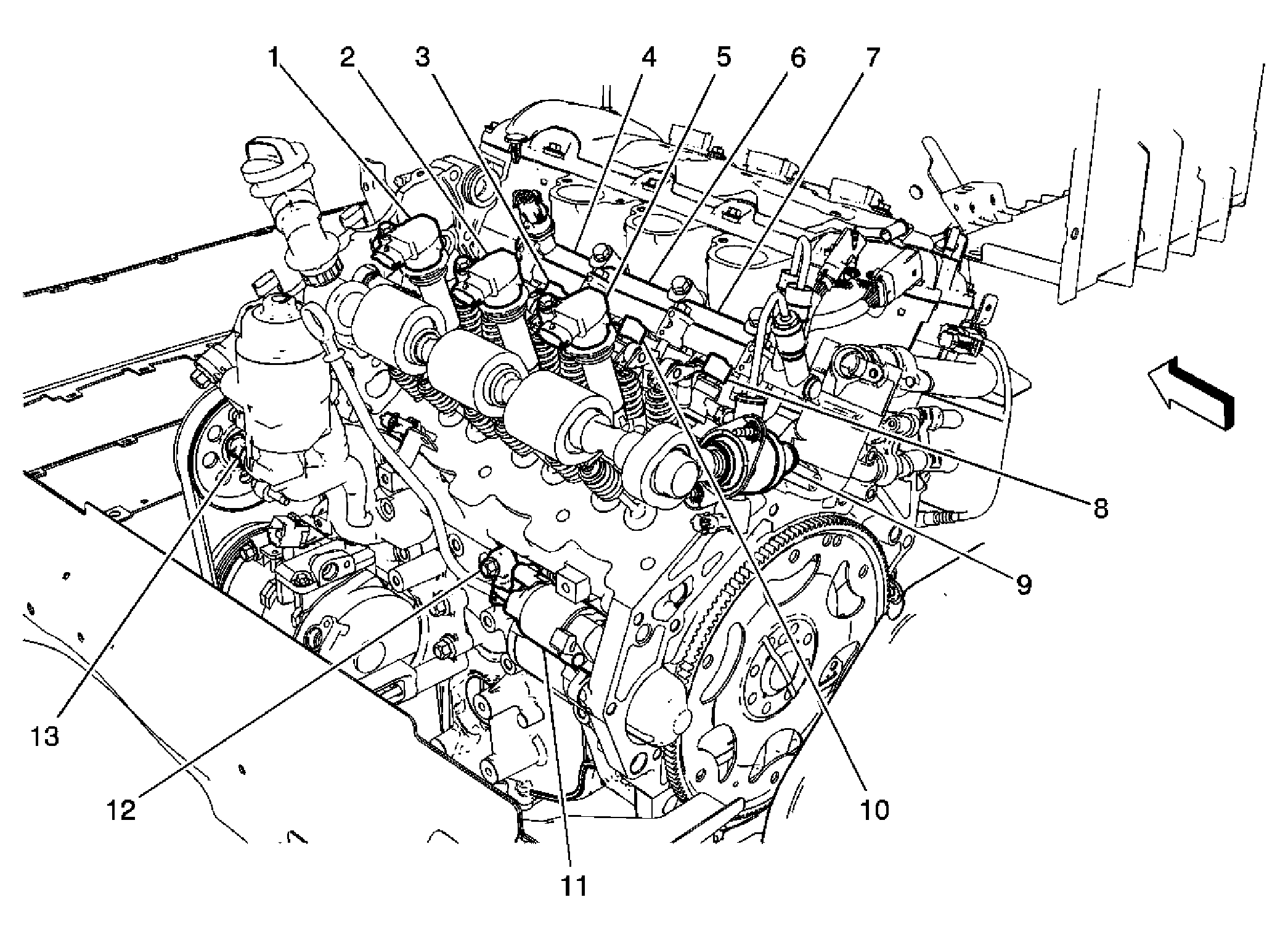

Engine- Left Rear (LLT)
Engine- Left Rear (LLT)
| Component Name | Callout |
|---|---|
| Ignition Coil 2 | 1 |
| Ignition Coil 4 | 2 |
| Fuel Injector 2 | 3 |
| Fuel Injector 1 | 4 |
| Ignition Coil 6 | 5 |
| Fuel Injector 3 | 6 |
| Fuel Injector 5 | 7 |
| Fuel Injector 6 | 8 |
| High Pressure Fuel Pump | 9 |
| Fuel Injector 4 | 10 |
| Starter Motor | 11 |
| Knock Sensor (KS) 2 | 12 |
| Engine Oil Pressure (EOP) Sensor | 13 |
