Engine- Right Rear (LLT)

Engine- Right Rear (LLT)

Component Name Callout
Ignition Coil 5 1
Evaporative Emission (EVAP) Canister Purge Solenoid Valve 2
Ignition Coil 3 3
Ignition Coil 1 4
Knock Sensor (KS) 1 5
Engine Block-Heater Connector 6
Crankshaft Position (CKP) Sensor 7

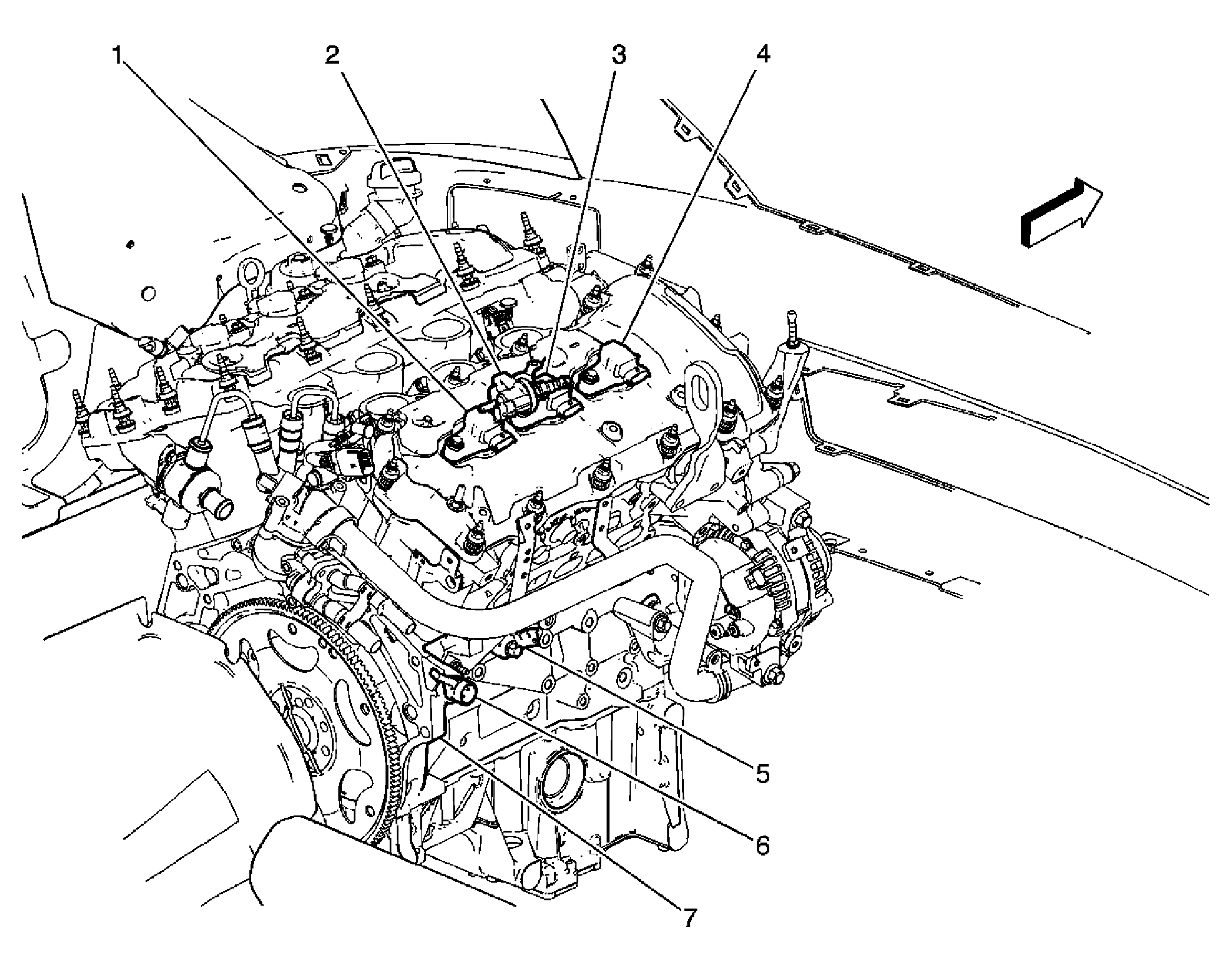

Fig 1: Engine-Right Rear Components (LLT)
GM1971716Courtesy of GENERAL MOTORS COMPANY
