Installation Procedure

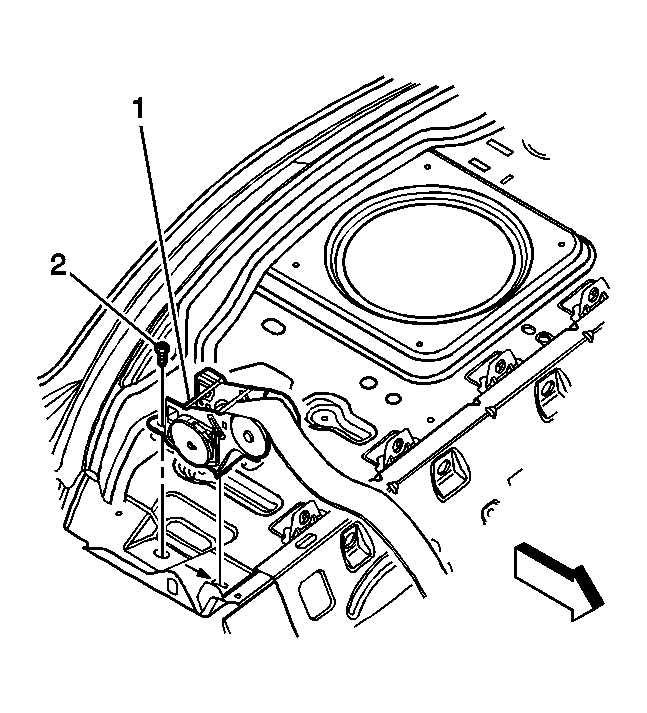

    Fig 1: Seat Belt Retractor Fastener
    GM755545Courtesy of GENERAL MOTORS COMPANY
  1. Install the rear shoulder belt retractor (1). Engage the tab on the retractor (1).
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the seat belt retractor fastener (2) and tighten to 30 N.m (22 lb ft).

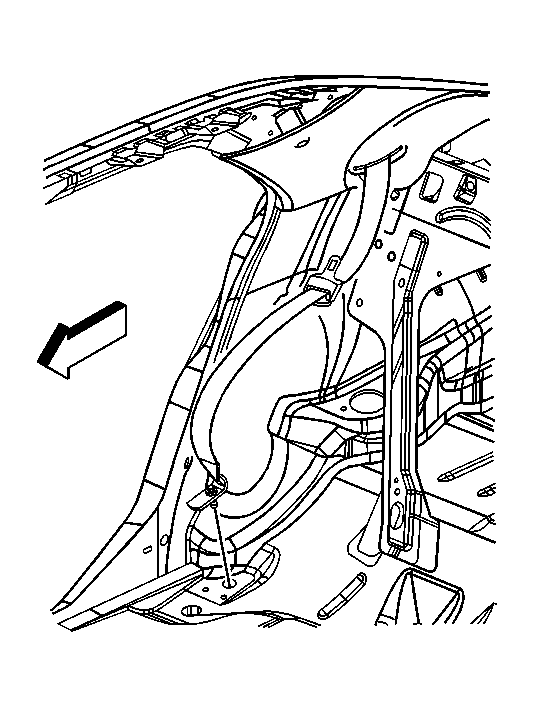

    3. Fig 2: View Of Rear Seat Shoulder Belt
    GM729863Courtesy of GENERAL MOTORS COMPANY
  3. Route the shoulder belt through the sail panel and verify that it is not twisted.
  4. Install the shoulder belt fastener and tighten to 30 N.m (22 lb ft).
  5. Install the sail panel. Refer to Sail Panel Replacement .
  6. Install the rear trim shelf panel. Refer to Rear Window Shelf Trim Panel Replacement .
  7. Install the rear seat back. Refer to Rear Seat Back Cushion Replacement .
  8. Install the rear seat cushion. Refer to Rear Seat Cushion Replacement .
