Keyless Entry (without ATH)

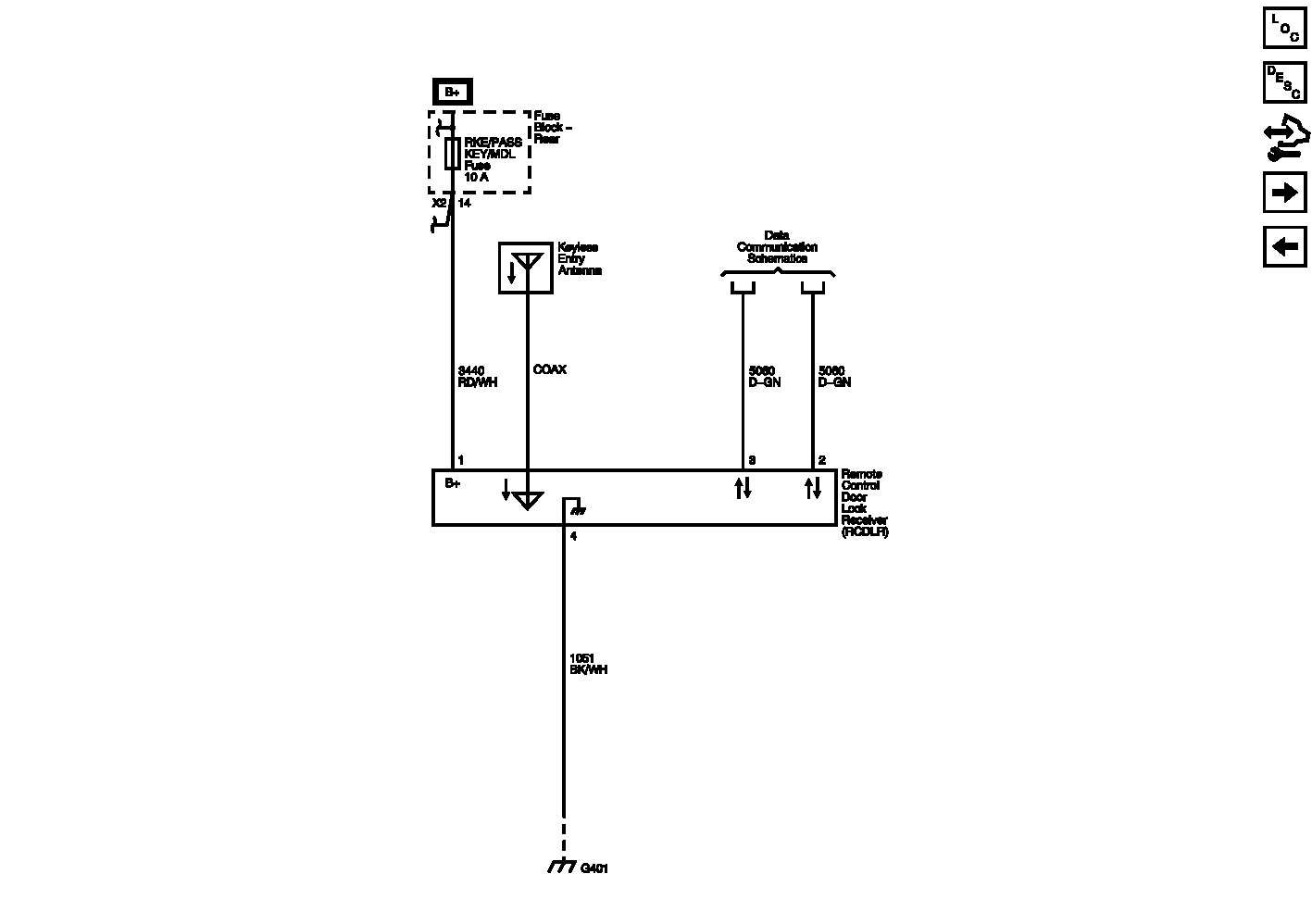

Fig 1: Keyless Entry Wiring Schematic (without ATH)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
