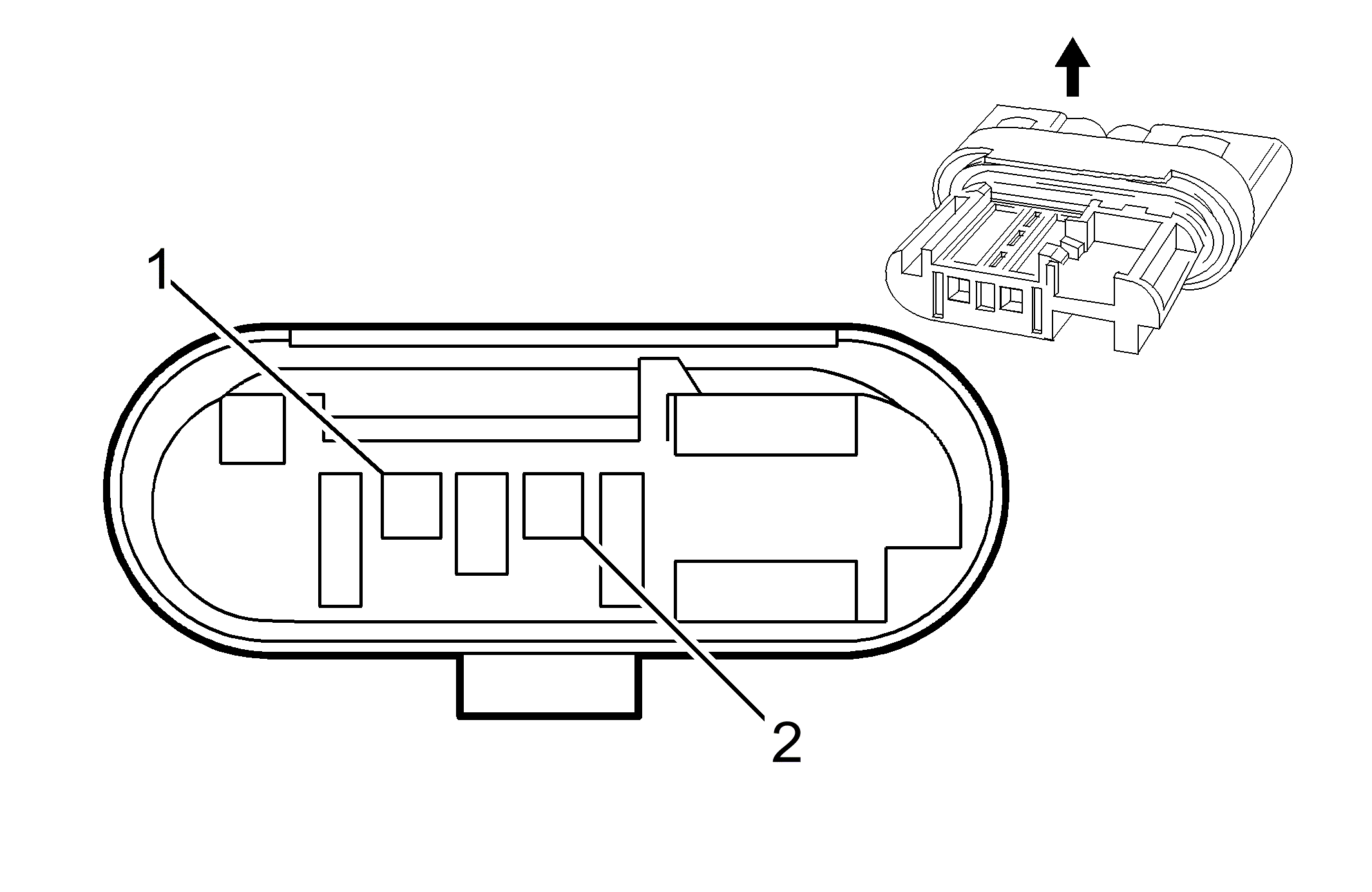

Pedestrian Impact Detection Sensor - Rear Upper Beam (B3T)
 Courtesy of
|
Connector Part Information
- Harness Type: Front Pedestrian Protection
- OEM Connector: 9-1241905-9
- Service Connector: Service by Harness- See Part Catalog
- Description: 2-Way F 0.64 MQS Series, Sealed (BU)
|
Terminal Part Information
- Terminated Lead: Service by Harness- See Part Catalog
- Release Tool: 12094429
- Diagnostic Test Probe: J-35616-64B (L-BU)
- Terminal/Tray: Not Available
- Core/Insulation Crimp: Not Available
|
Pedestrian Impact Detection Sensor - Rear Upper Beam (B3T)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 YE |
2160 |
Front End Discriminating Sensor Signal |
| 2 |
0.35 GY/BK |
2260 |
SIR Forward Sensor Low Reference |
