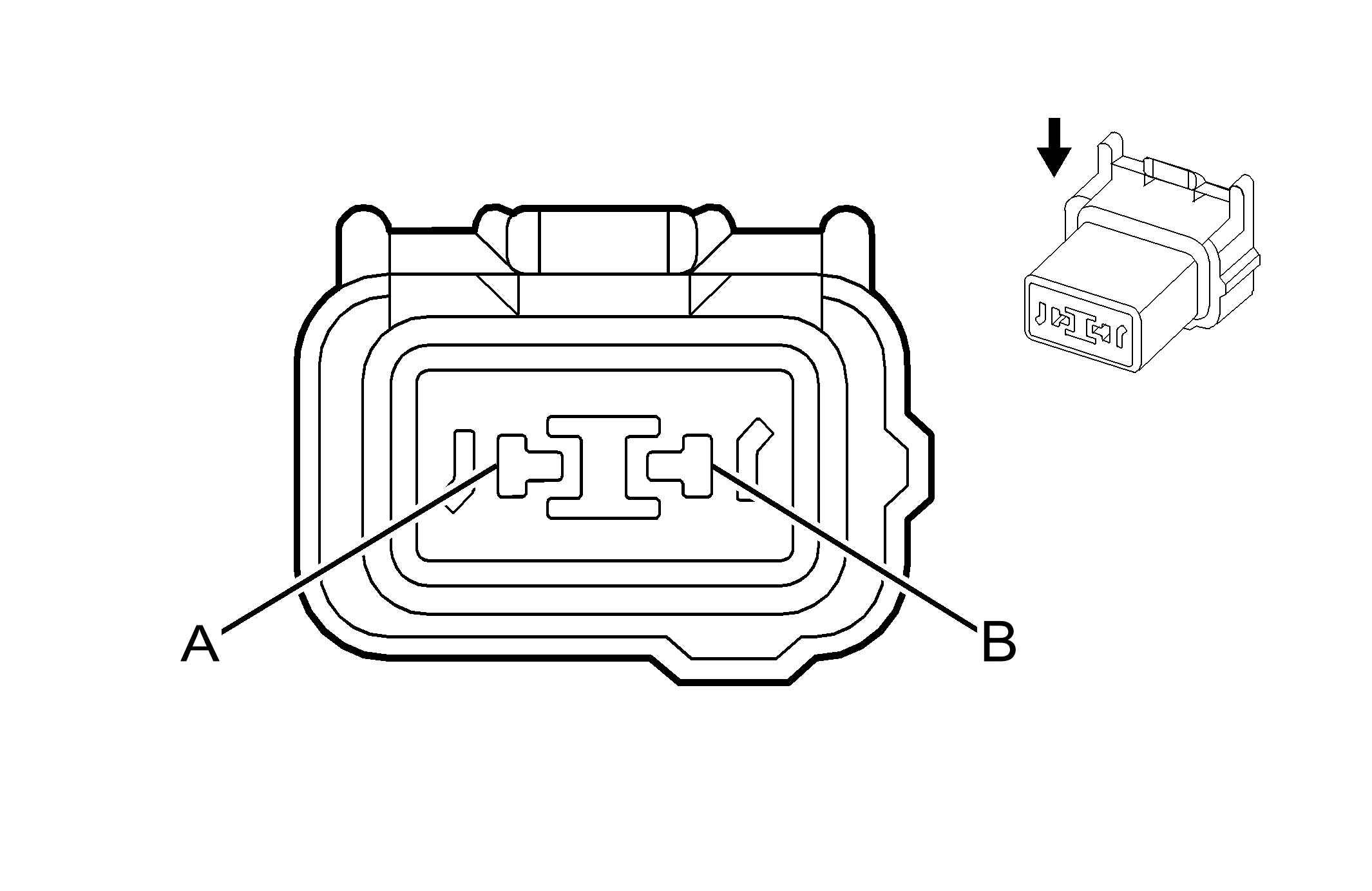

Turn Signal Lamp - Right Front (without T4F)
 Courtesy of
|
Connector Part Information
- Harness Type: Right Headlamp
- OEM Connector: 1-1438608-3
- Service Connector: Service by Harness- See Part Catalog
- Description: 2-Way F MQS Series, Sealed (BU)
|
Terminal Part Information
- Terminated Lead: Service by Harness- See Part Catalog
- Release Tool: Not Available
- Diagnostic Test Probe: Not Available
- Terminal/Tray: Not Available
- Core/Insulation Crimp: Not Available
|
Turn Signal Lamp - Right Front (without T4F)
| Pin |
Wire |
Circuit |
Function |
| A |
0.8 BK |
1315 |
Right Front Turn Signal Lamp Supply Voltage |
| B |
0.8 BK |
250 |
Ground |
