Shift Lock Control Wiring Schematics: MYB

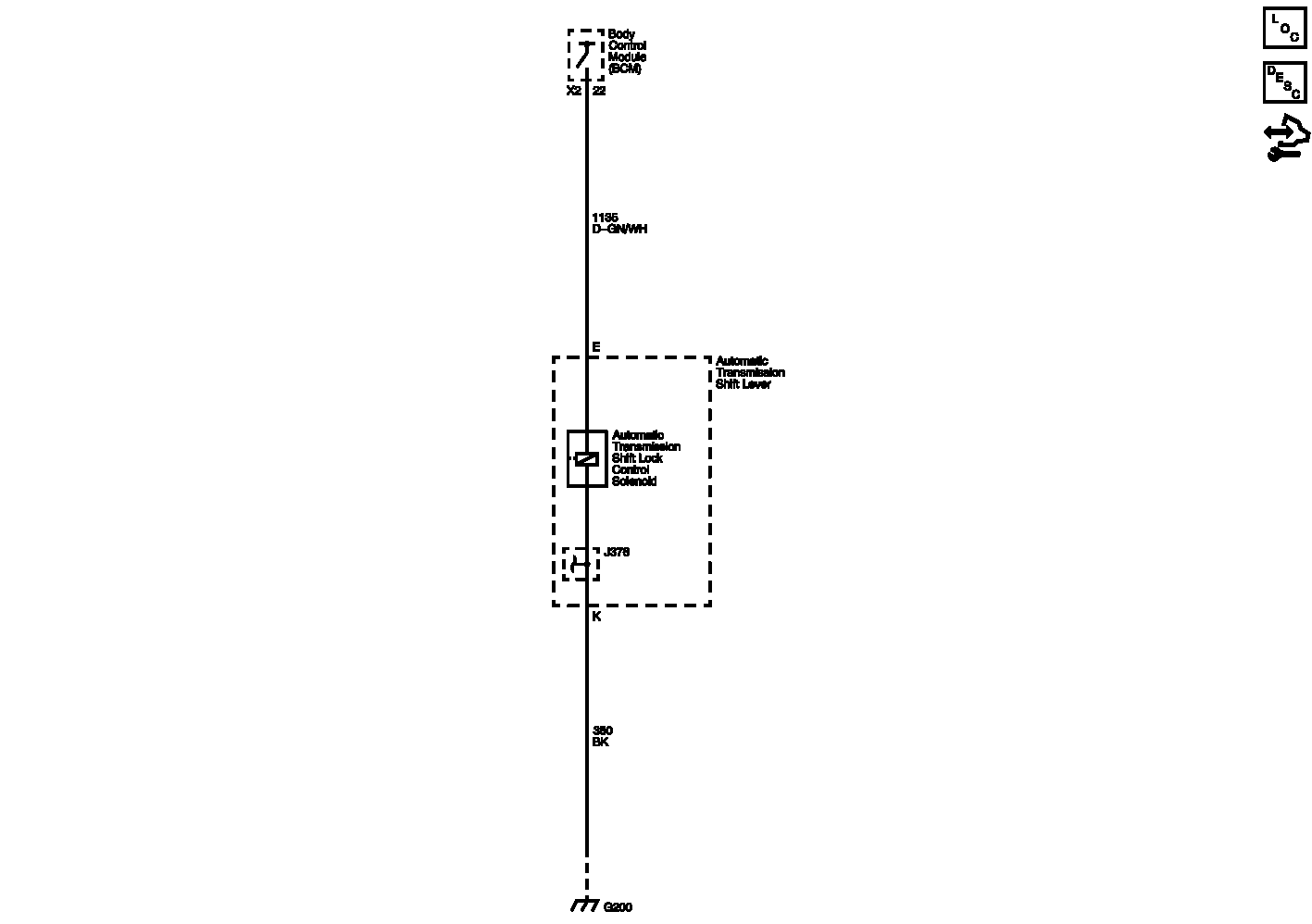

Fig 1: MYB Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
