Barometric Pressure Sensor: Diagrams

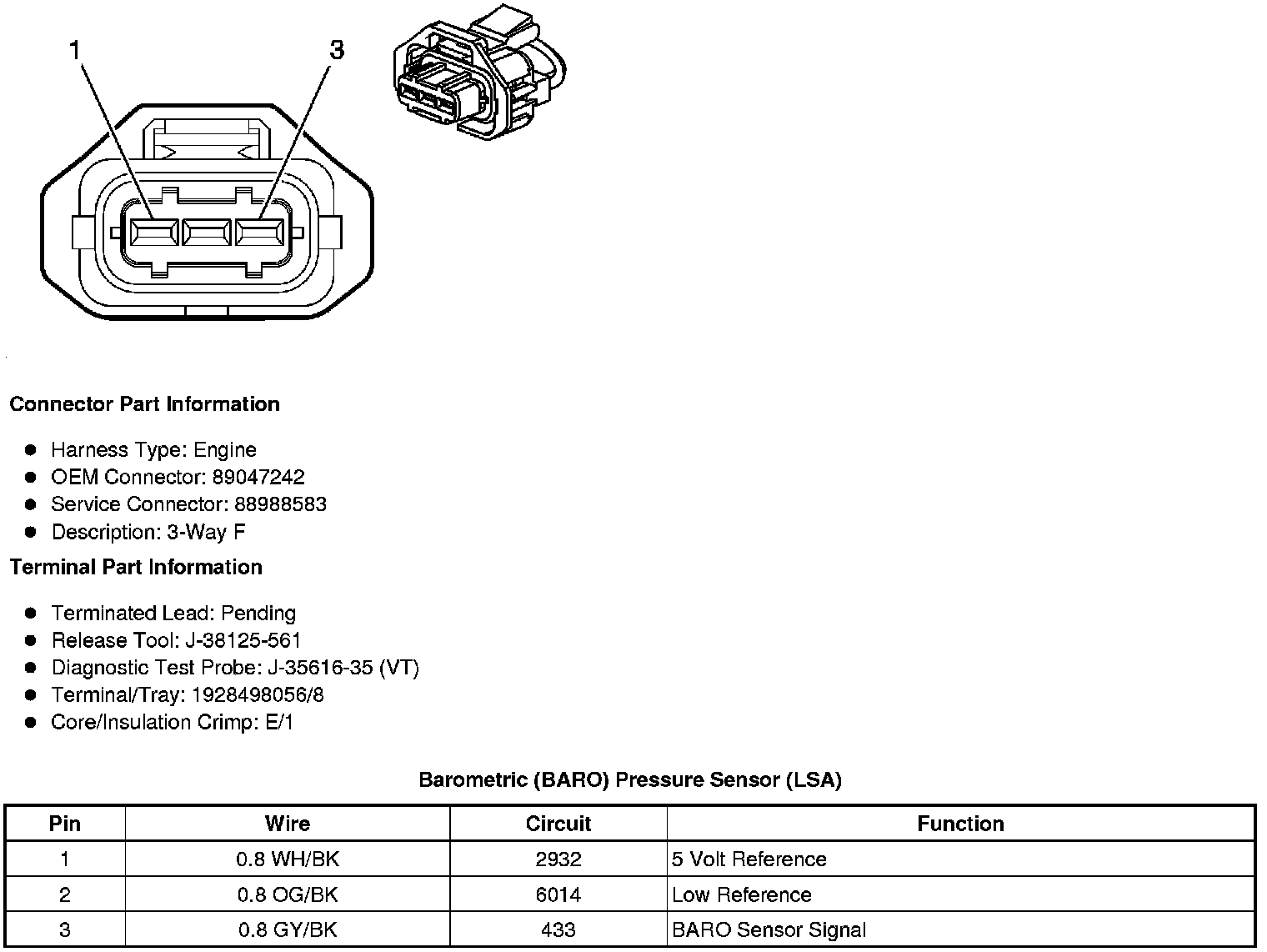

Component Connector End Views

Barometric (BARO) Pressure Sensor (LSA)
