Window Switch - Passenger

Door Component Views

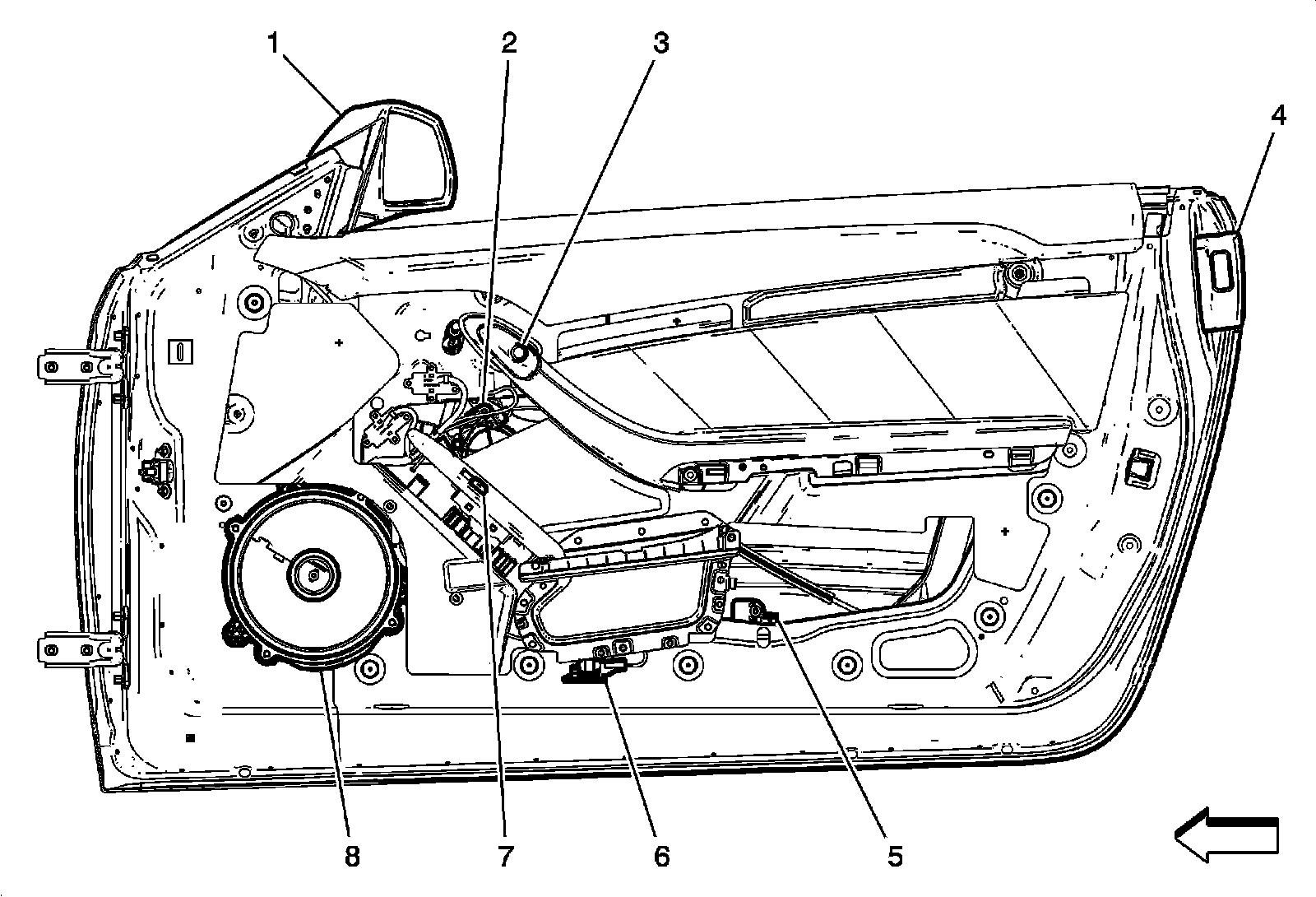

Passenger Door Components (Coupe)

1 - Outside Rearview Mirror - Passenger
2 - Window Motor - Passenger
3 - Door Latch Release Switch - Passenger
4 - Door Handle Switch - Passenger
5 - Inflatable Restraint Side Impact Sensor (SIS) - Right
6 - Door Courtesy Lamp - Passenger
7 - Window Switch - Passenger
8 - Speaker - Right Front
