Differential Temperature Sensor/Switch

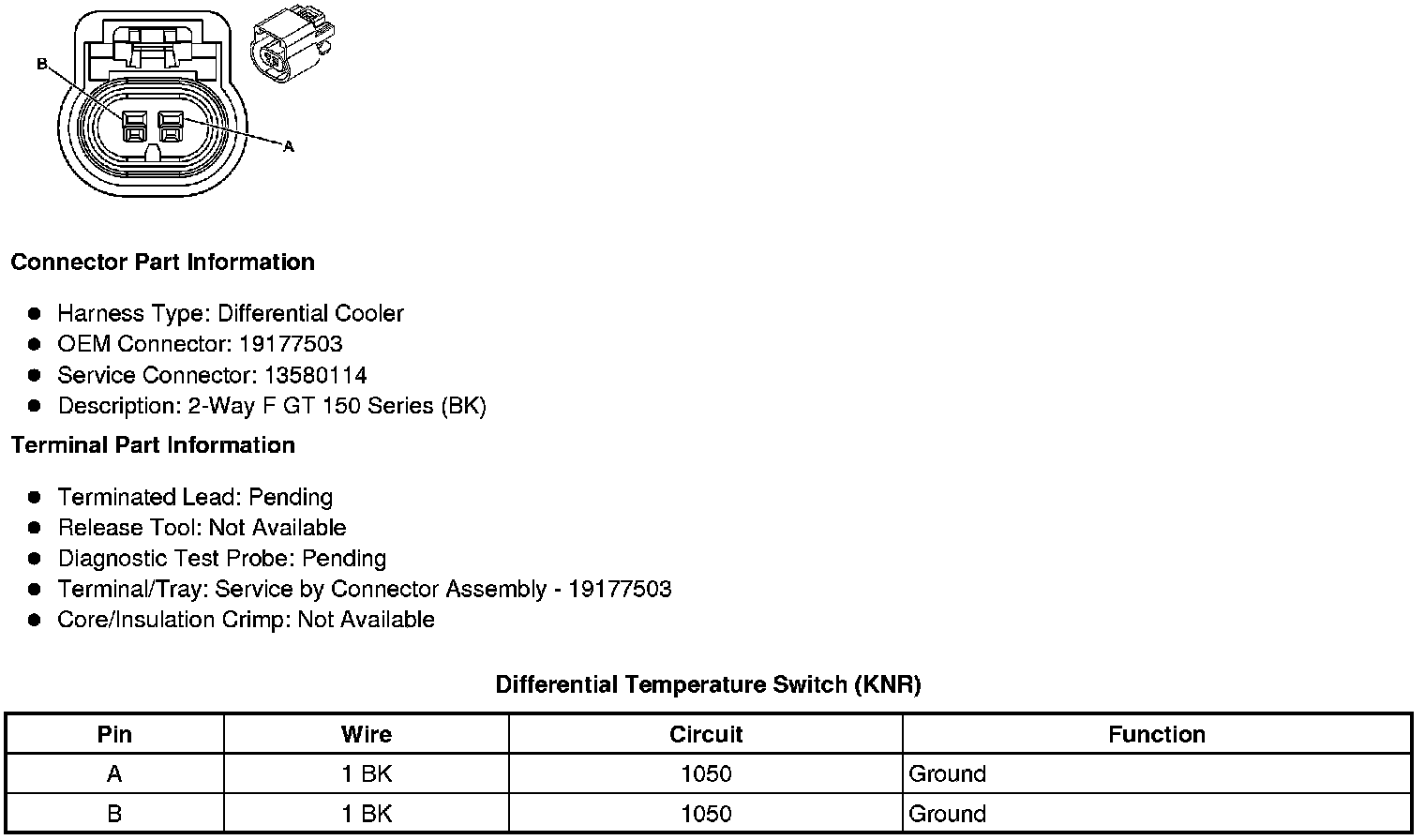

Component Connector End Views
Differential Temperature Switch (KNR)
