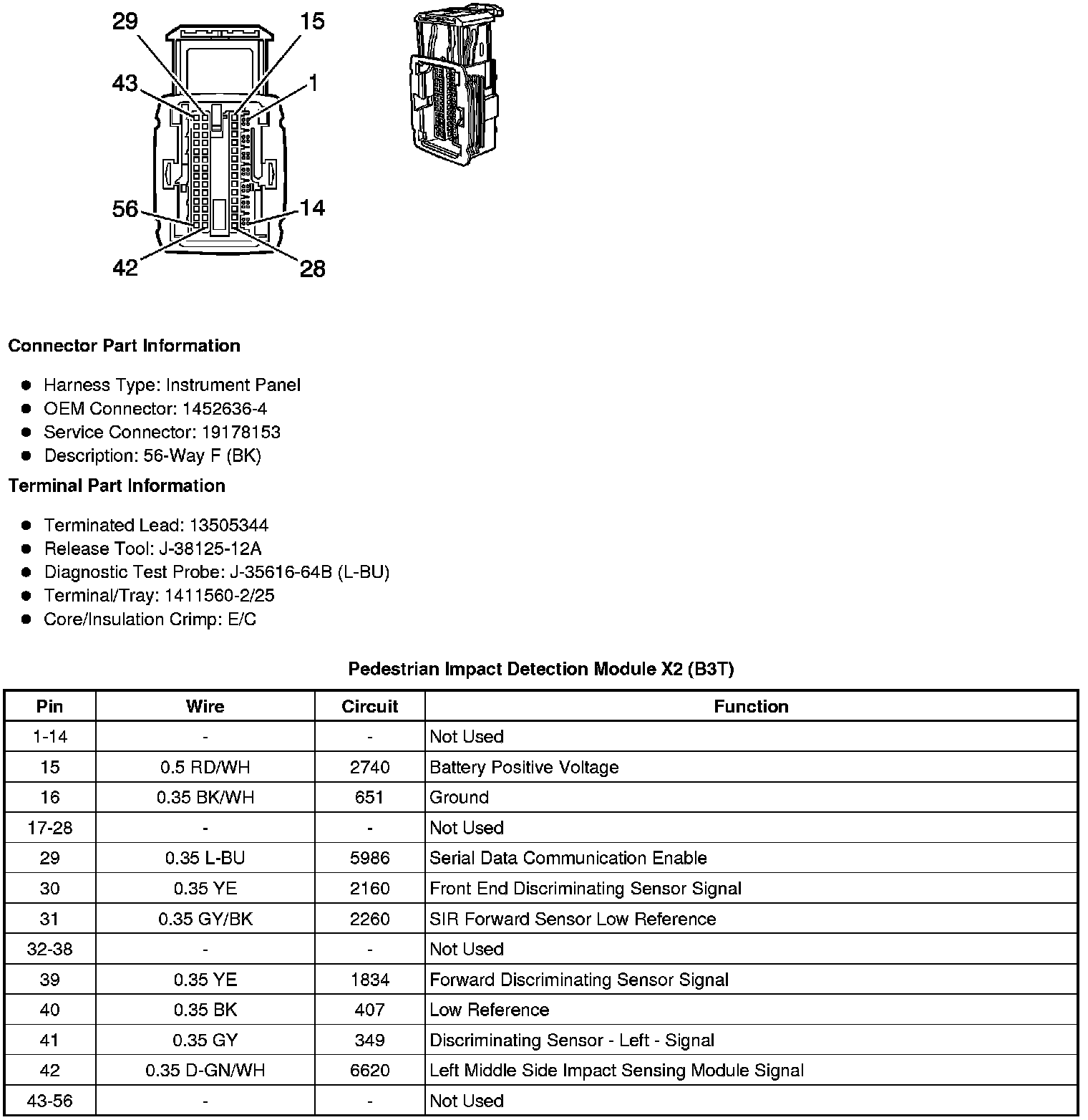

Pedestrian Impact Detection Module X2 (B3T)
Component Connector End Views
Pedestrian Impact Detection Module X2 (B3T)
