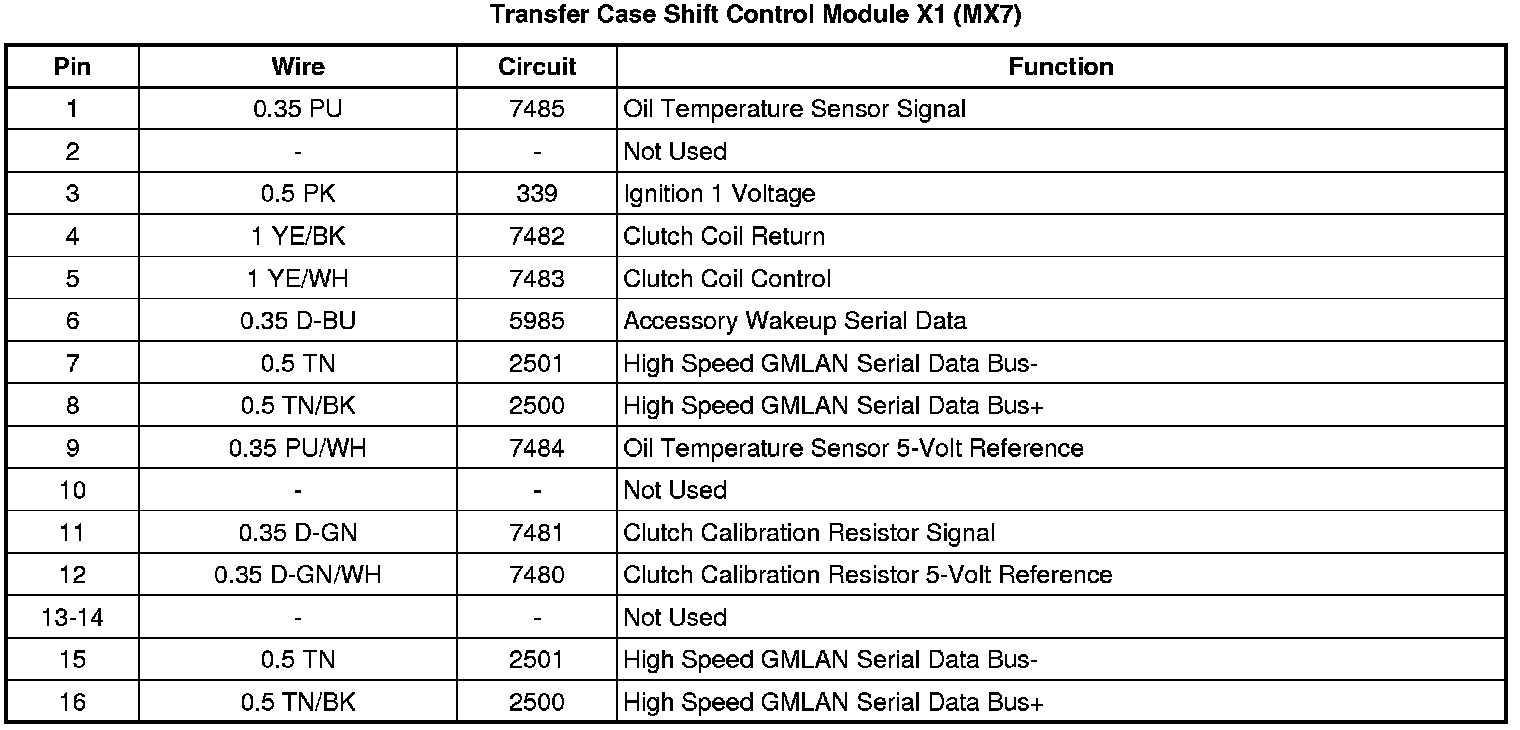

Transfer Case Shift Control Module X1 (MX7)

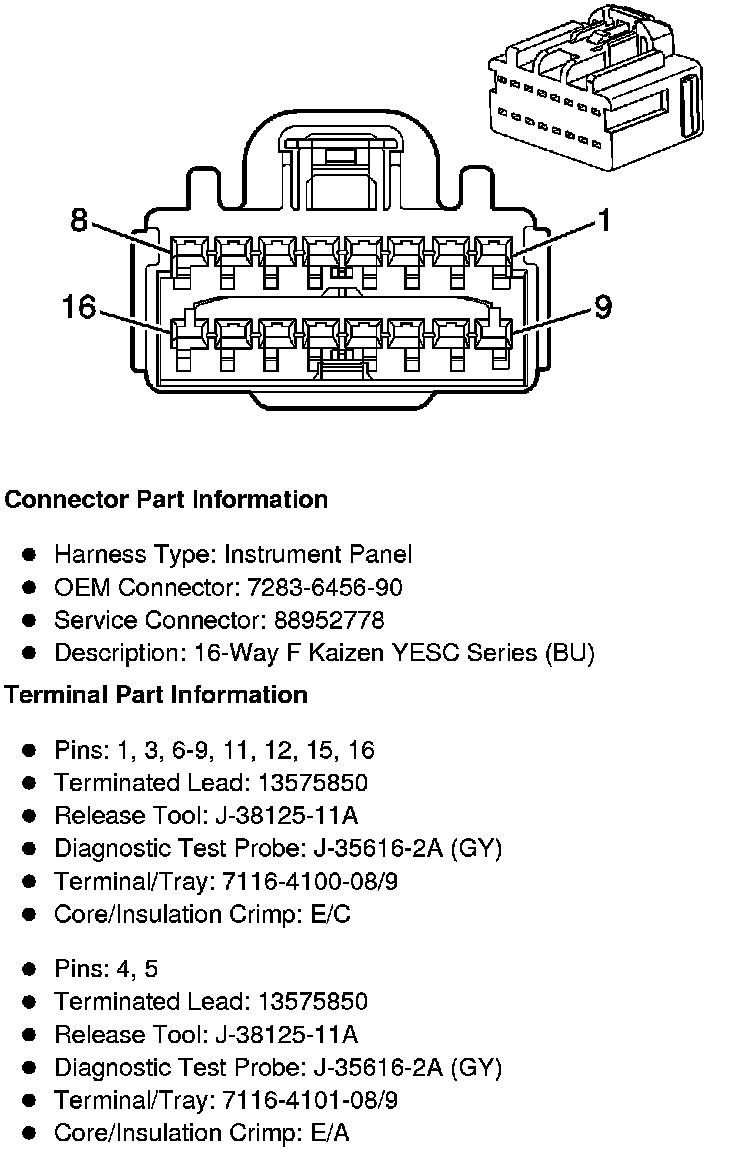

Component Connector End Views
Transfer Case Shift
Control Module
X1 (MX7)
