HVAC Components (RHD)

Instrument Panel/Center Console Component Views

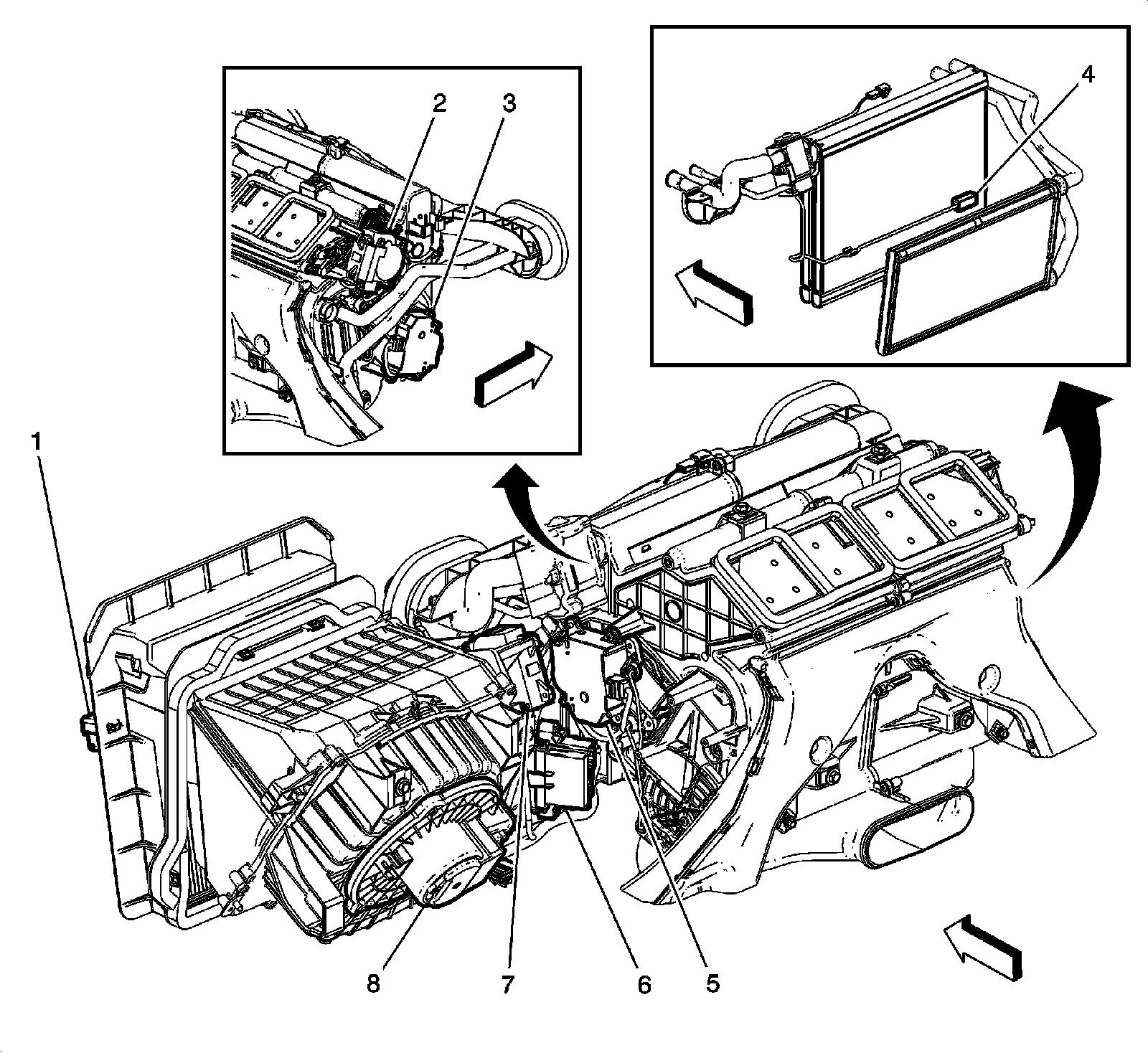

HVAC Components (RHD)




1 - Ambient Air Quality Sensor
2 - Mode Actuator
3 - Air Temperature Actuator - Right
4 - Evaporator Temperature Sensor
5 - Air Temperature Acutator - Left
6 - Blower Motor Control Module
7 - Recirculation Actuator
8 - Blower Motor
