Fuel Level Sensor Assembly

Wheels/Vehicle Underbody Component Views

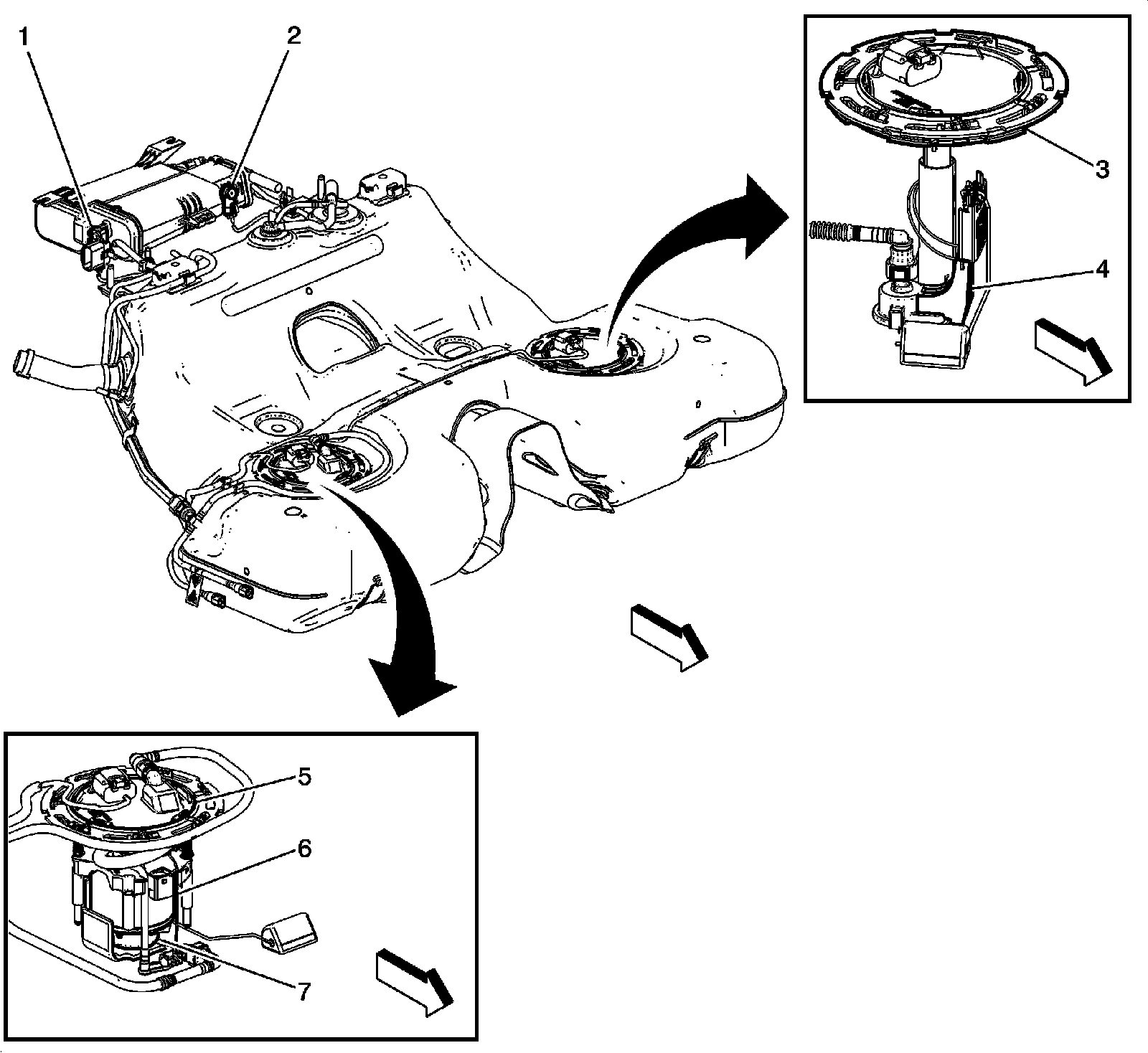

Fuel Tank Components (without LSA)




1 - Fuel Tank Pressure Sensor
2 - Evaporative Emission (EVAP) Canister Vent Solenoid Valve
3 - Fuel Level Sensor Assembly
4 - Fuel Level Sensor - Secondary
5 - Fuel Pump and Sender Assembly
6 - Fuel Level Sensor - Primary
7 - Fuel Pump
