Throttle Position Sensor: Locations

Instrument Panel/Center Console Component Views

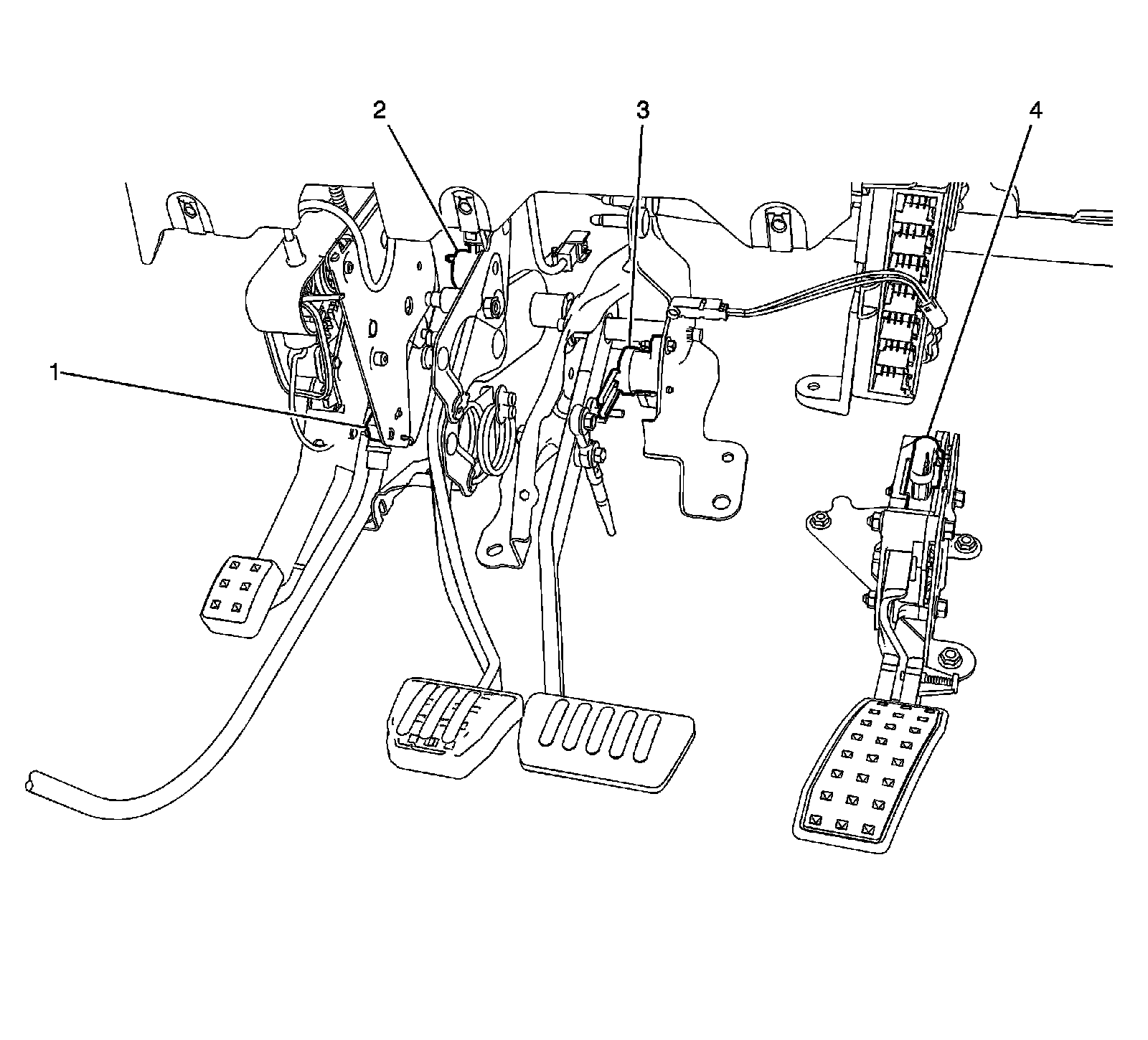

Lower Left Side of the Instrument Panel Components (Left Hand Drive)




1 - Park Brake Switch (except J77)
2 - Clutch Pedal Position (CPP) Sensor (MV7 or MG9)
3 - Brake Pedal Position (BPP) Sensor
4 - Accelerator Pedal Position (APP) Sensor
