Vehicle Speed Sensor: Locations

Powertrain Component Views

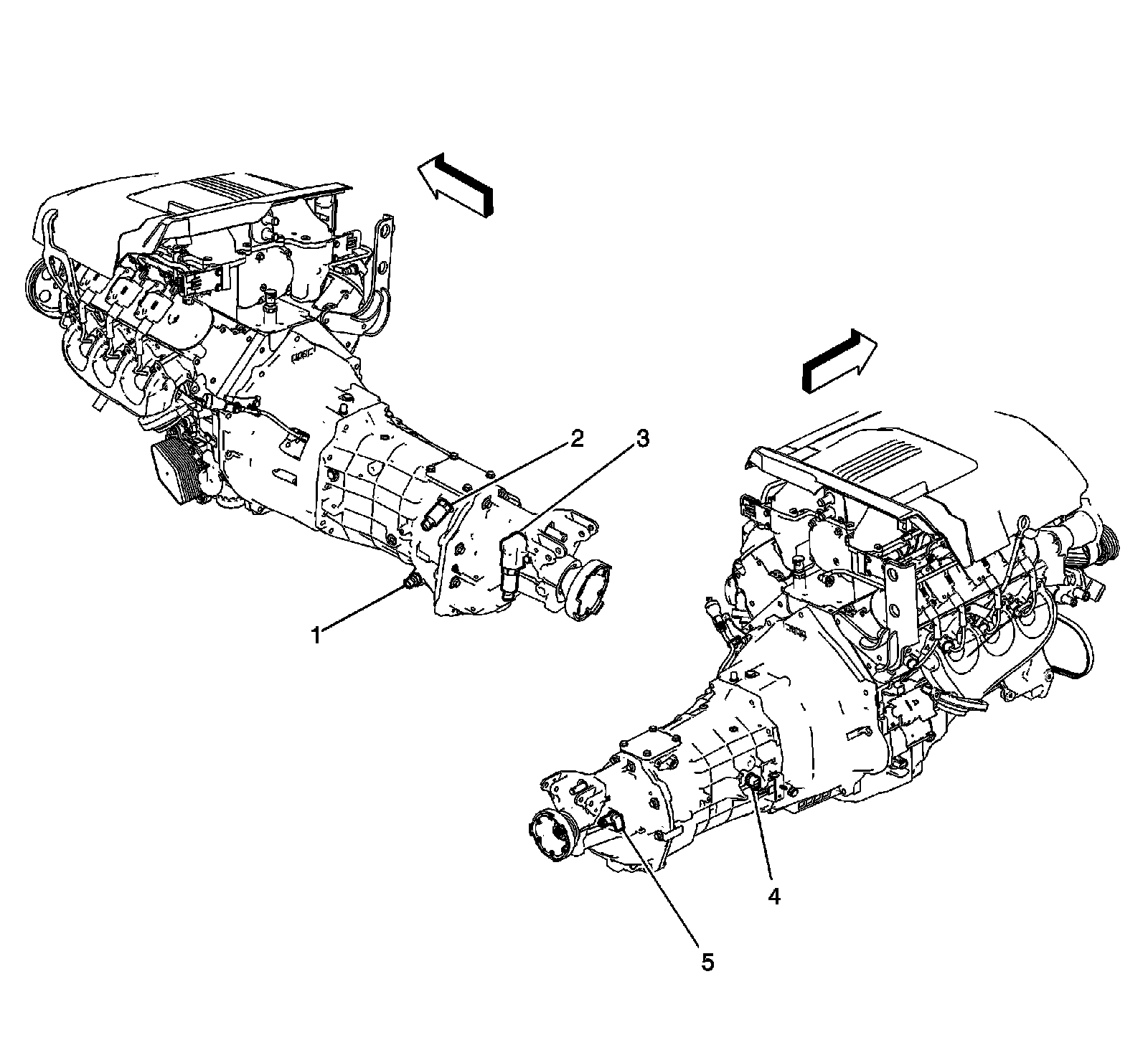

Manual Transmission Components (MG9 and MV7)




1 - Manual Transmission Fluid Temperature Sensor (MG9)
2 - Skip Shift Solenoid (MG9)
3 - Reverse Lockout Solenoid (MG9)
4 - Backup Lamp Switch (MG9 or MV7)
5 - Vehicle Speed Sensor (VSS) (MG9)
