Liftgate Module (LGM)

Luggage Compartment/Rear of Vehicle Component Views

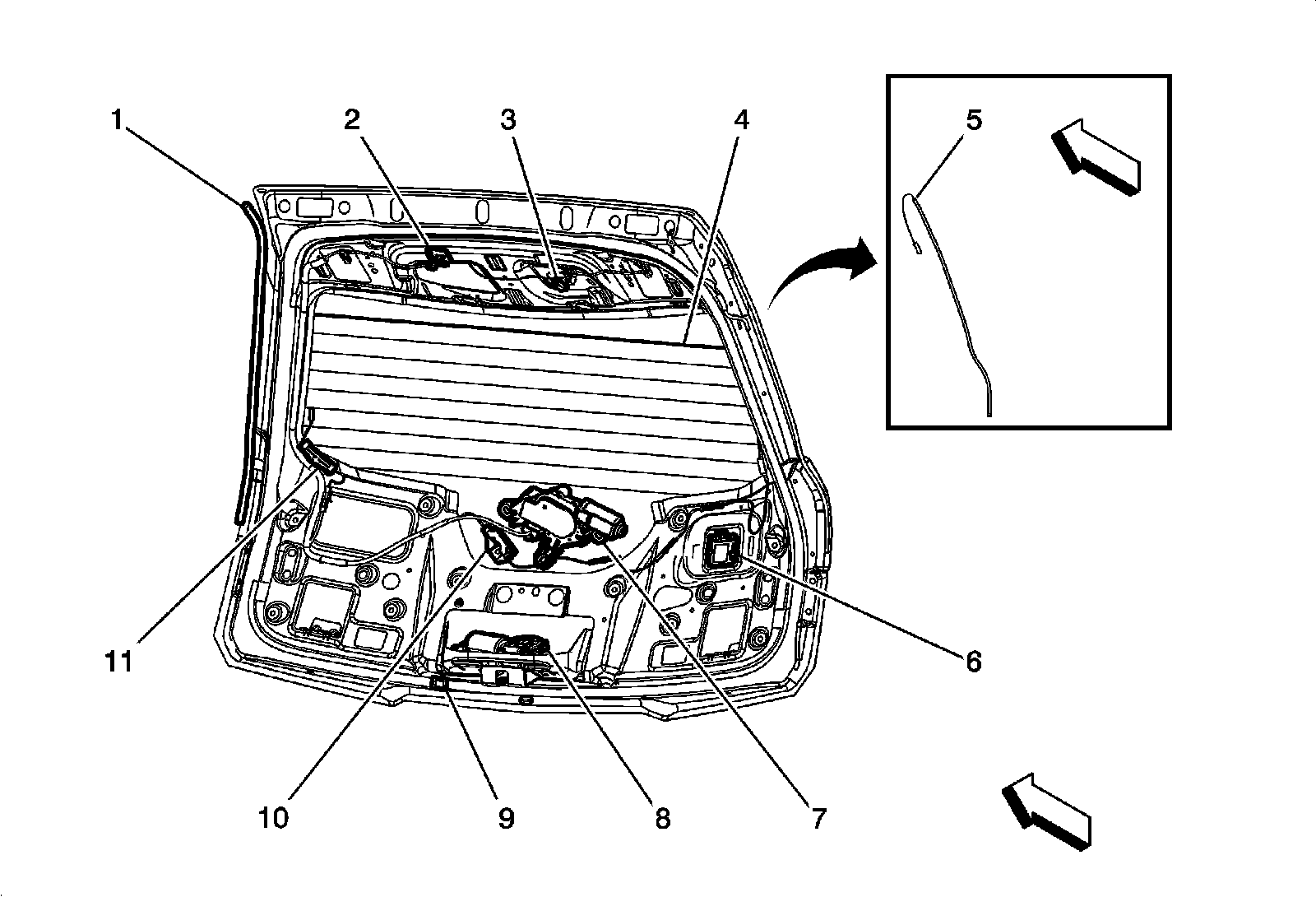

Liftgate Components (Wagon)




1 - Liftgate Object Sensor - Right
2 - Radio Antenna Inductor
3 - Radio Antenna Module
4 - Rear Window Defogger Grid
5 - Liftgate Object Sensor - Left
6 - Liftgate Module (LGM)
7 - Rear Window Wiper Motor
8 - Liftgate Latch Assembly
9 - Liftgate Close Switch
10 - Defogger Coil - Left
11 - Defogger Coil - Right
