Electronic Brake Control Module (EBCM)

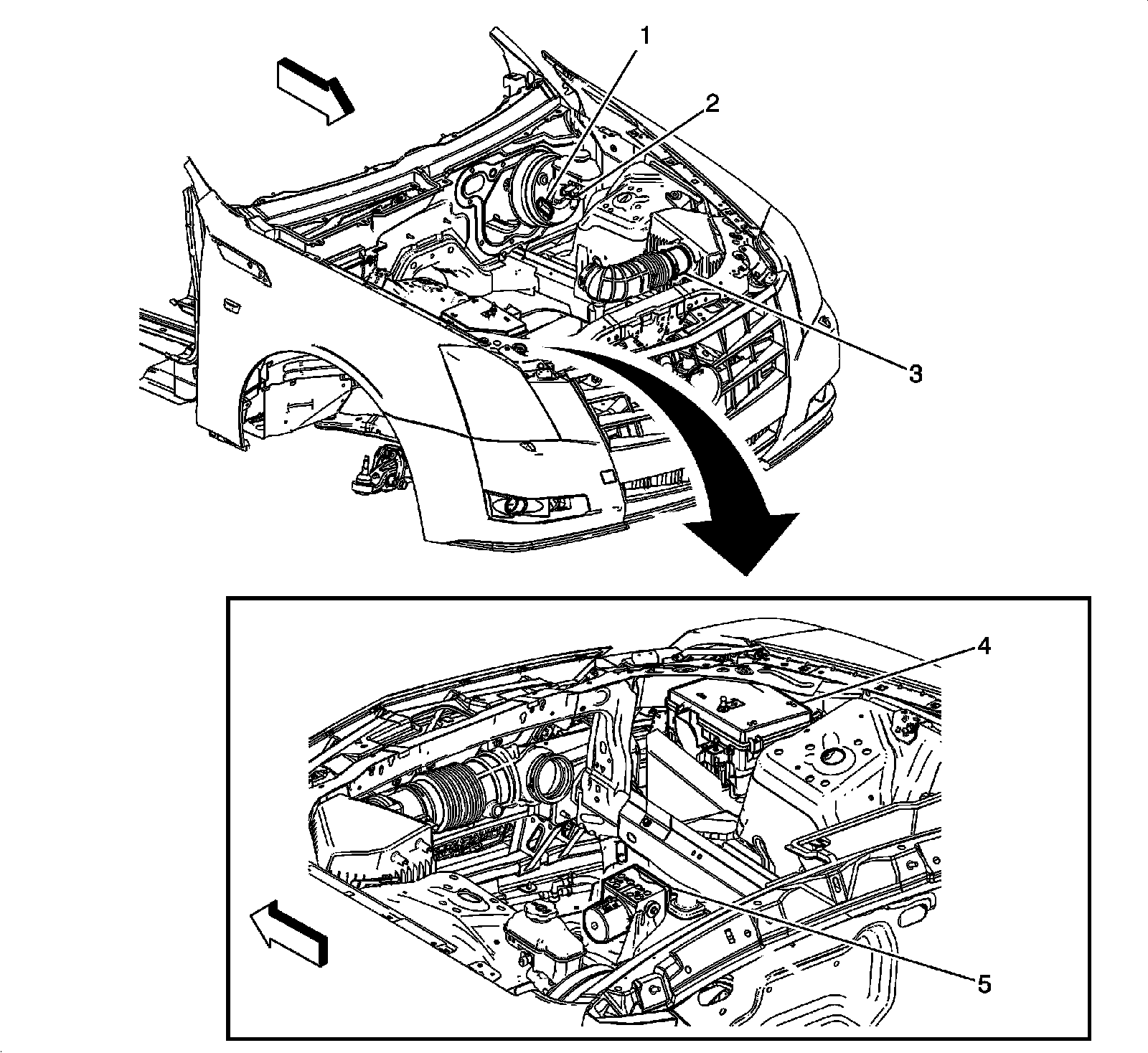

Front of Vehicle/Engine Compartment Component Views

Engine Compartment Components




1 - Brake Booster Vacuum Sensor (LFW or LFX)
2 - Brake Fluid Level Switch
3 - Multifunction Intake Air Sensor (LFW or LFX)
4 - Fuse Block - Underhood
5 - Electronic Brake Control Module (EBCM)
