Luggage Compartment Components - Left (Sedan)

Luggage Compartment/Rear of Vehicle Component Views

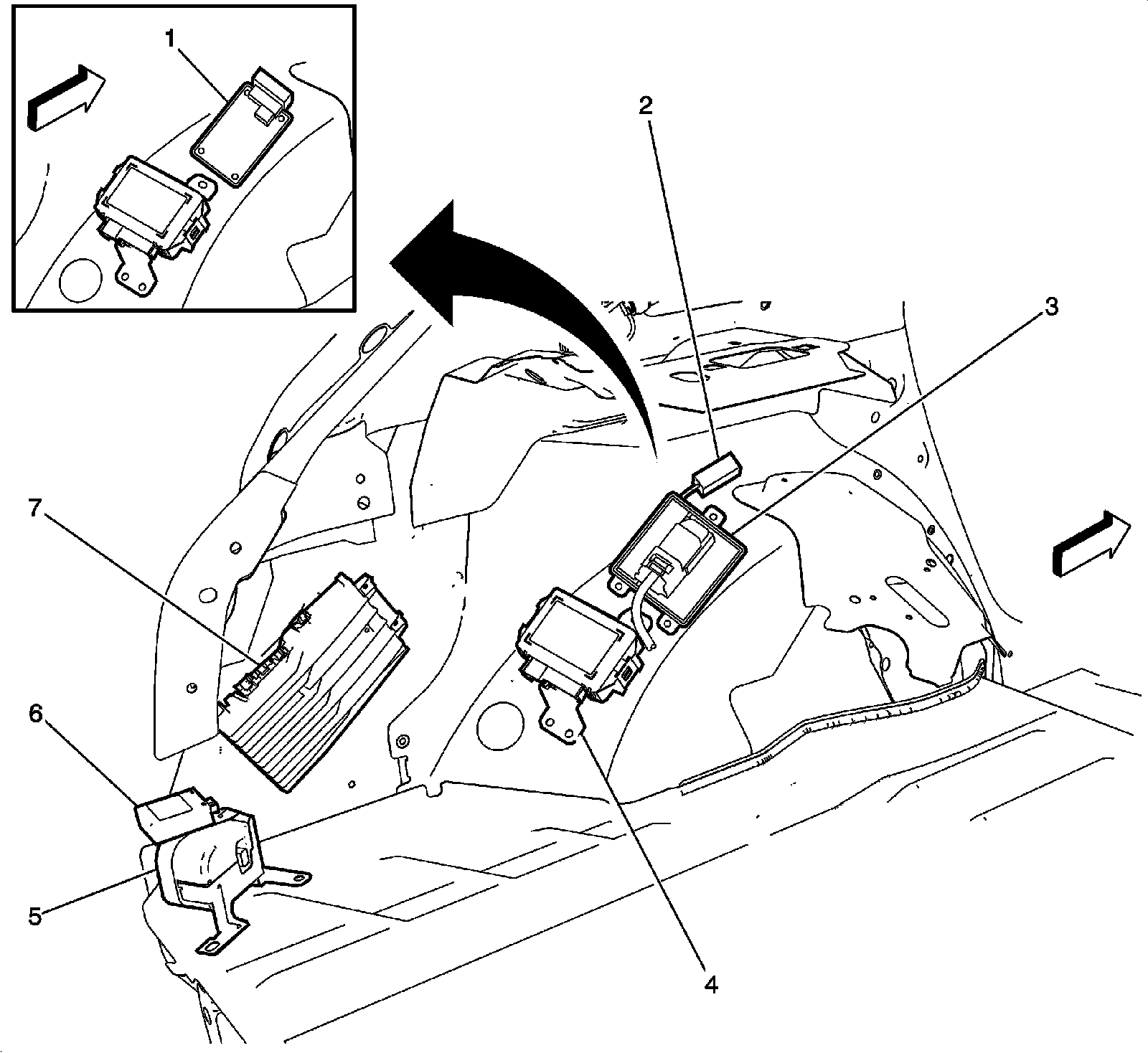

Luggage Compartment Components - Left (Sedan)




1 - Electronic Suspension Control Module (F55)
2 - Data Link Resistor (LLT or LF1 without J77)
3 - Fuel Pump Flow Control Module (LF1 or LLT)
4 - Auxiliary Body Control Module (XBCM) (UA2)
5 - Theft Deterrent Alarm Siren (UA2)
6 - Vehicle Inclination Sensor (UA2)
7 - Audio Amplifier (UQA or UQS)
