Luggage Compartment Components - Left (Wagon)




Luggage Compartment/Rear of Vehicle Component Views

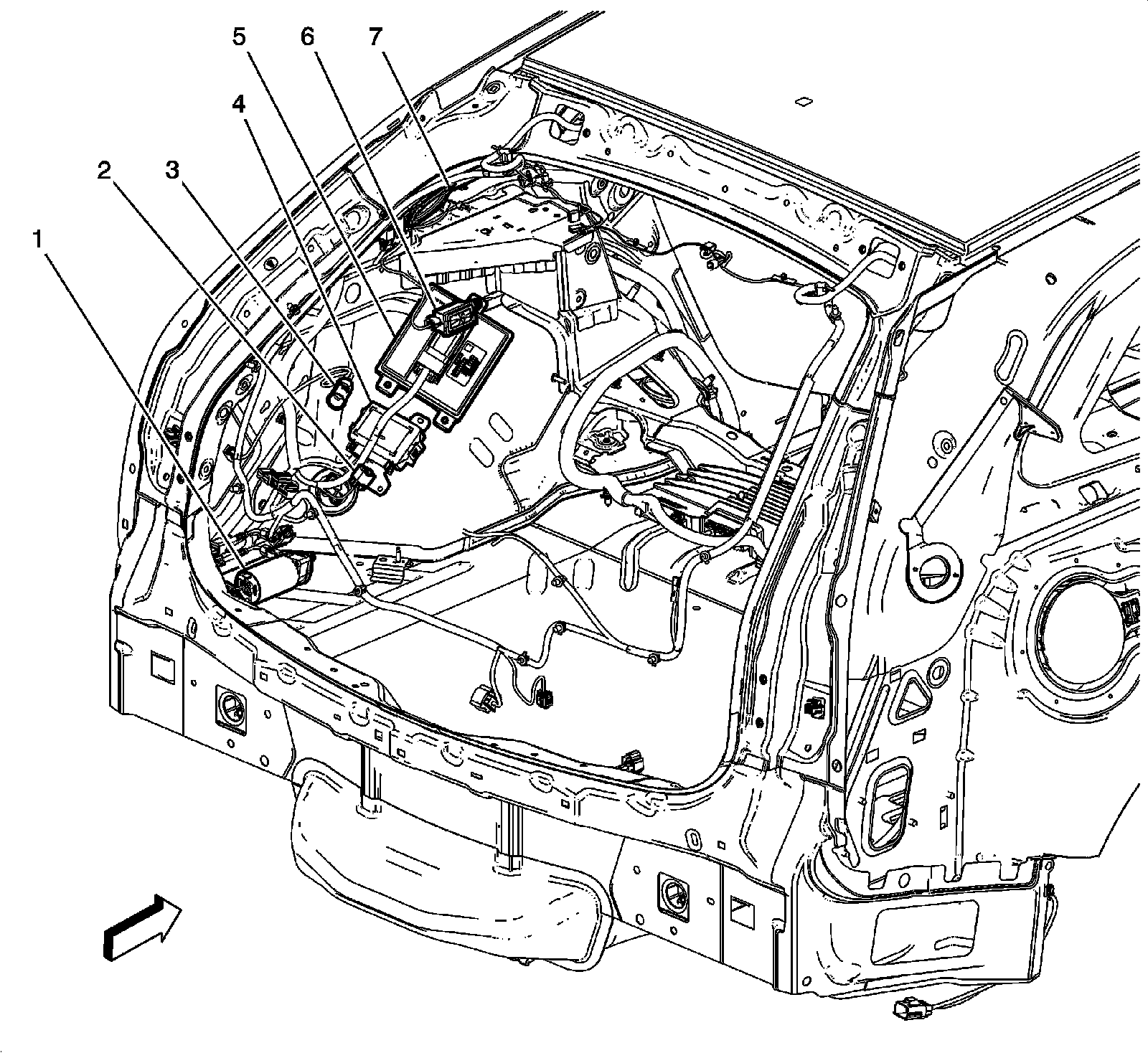

Luggage Compartment Components - Left (Wagon)




1 - Liftgate Motor Assembly
2 - Data Resistor
3 - Accessory Power Outlet - Cargo
4 - Auxiliary Body Control Module (XBCM) (UA2)
5 - Fuel Pump Flow Control Module
6 - Cargo Lamp - Left
7 - Speaker - Left Rear Compartment
