Lower Right Side of the Instrument Panel Components (RHD)

Instrument Panel/Center Console Component Views

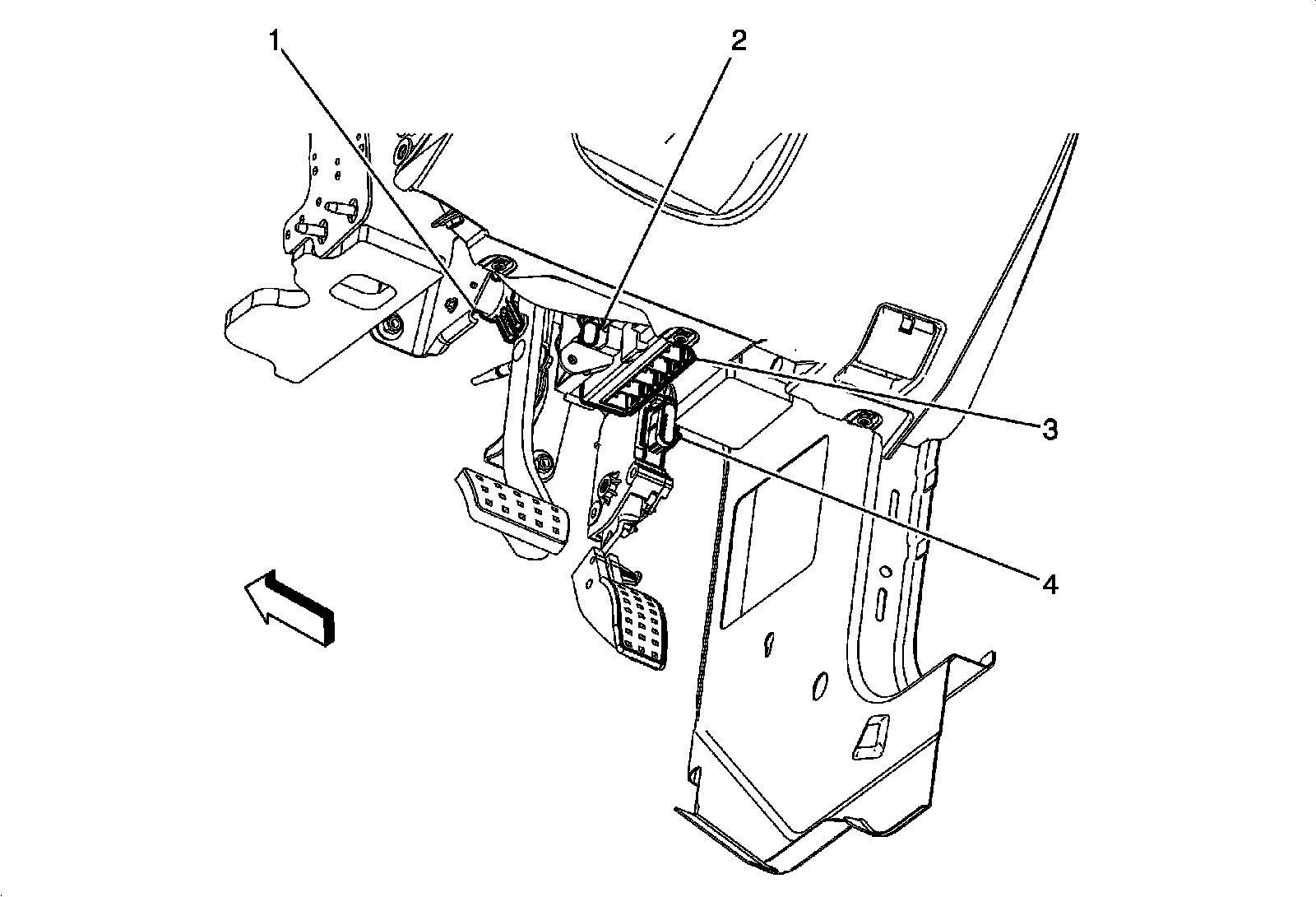

Lower Right Side of the Instrument Panel Components (RHD)




1 - Brake Pedal Position Sensor
2 - Instrument Panel Courtesey Lamp - Right
3 - Body Control Module (BCM)
4 - Acecelerator Pedal Position (APP) Sensor
