Installation Procedure

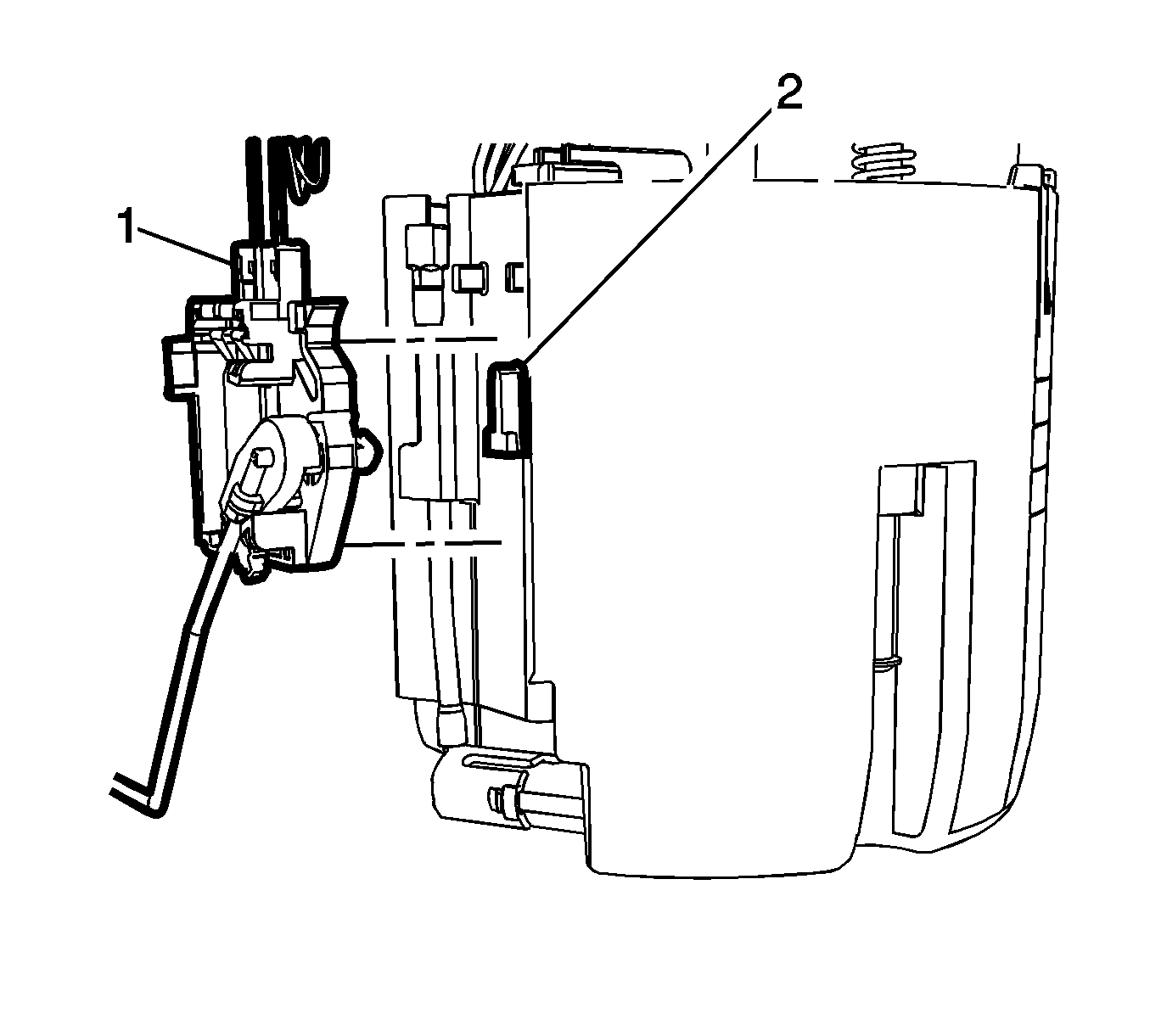

Fig 1: Fuel Level Sensor & Reservoir Inverted T

Courtesy of GENERAL MOTORS COMPANY

Install the fuel level sensor (1) and line up reservoir inverted T (2) with slot on fuel level sensor.

Fig 2: Locking Fuel Level Sensor Locking Tab

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Do not push on the electrical terminals.

Slide the fuel level sensor (1) downward until the locking tab (2) locks into place.

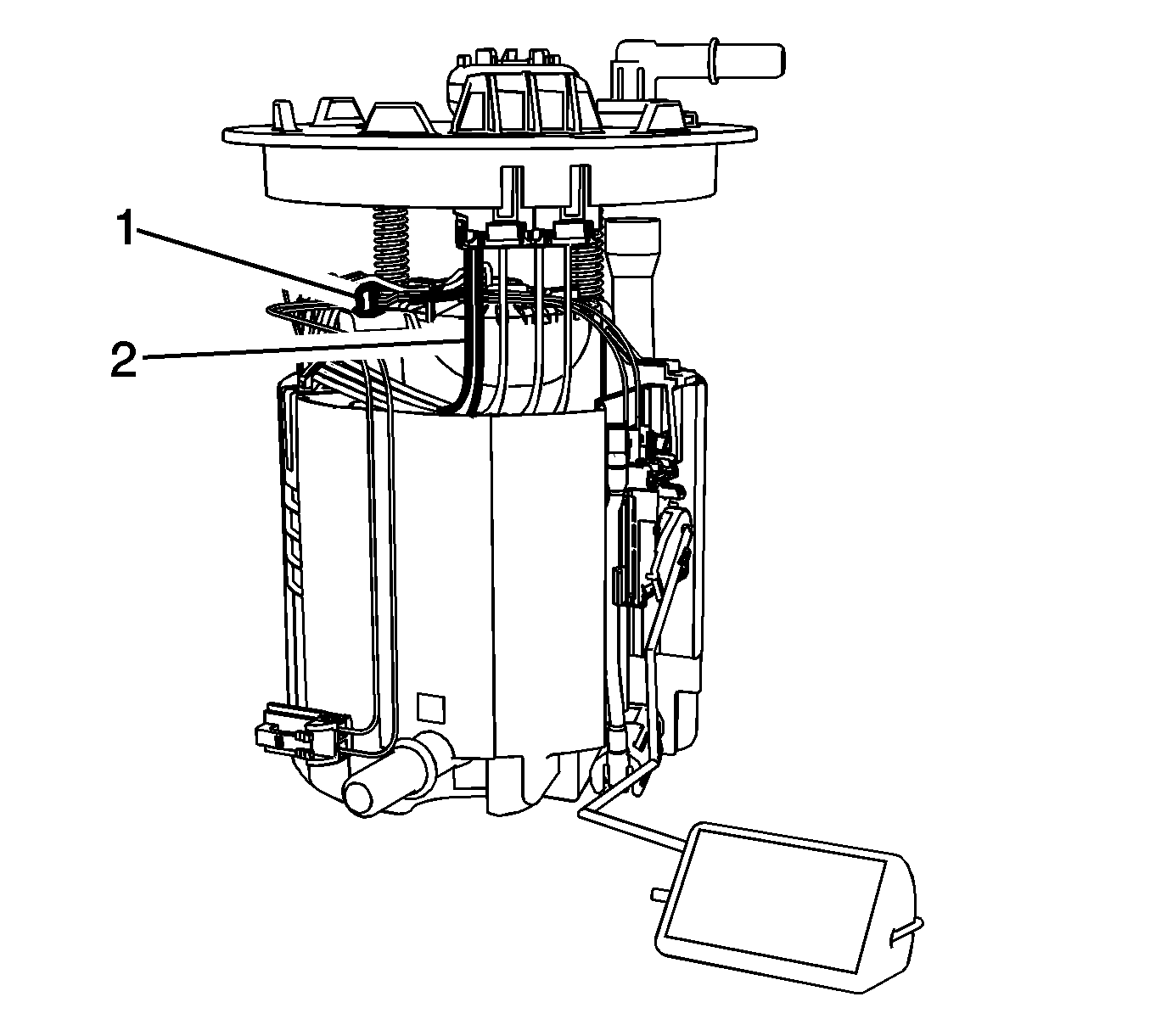

Fig 3: Pump & Support Wire Retention

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Do not put tension on the wires at the resistor card.

Route the wires into the pump support wire retention feature (1), and gently pull the wire slack flush with the top of the pump (2).
Install the fuel tank pump module. Refer to Fuel Tank Fuel Pump Module Replacement - Right Side .
