Manifold Pressure/Vacuum Sensor: Service and Repair

Manifold Absolute Pressure Sensor Replacement

Removal Procedure




1. Remove the intake manifold sight shield. Refer to Upper Intake Manifold Sight Shield Replacement Service and Repair.

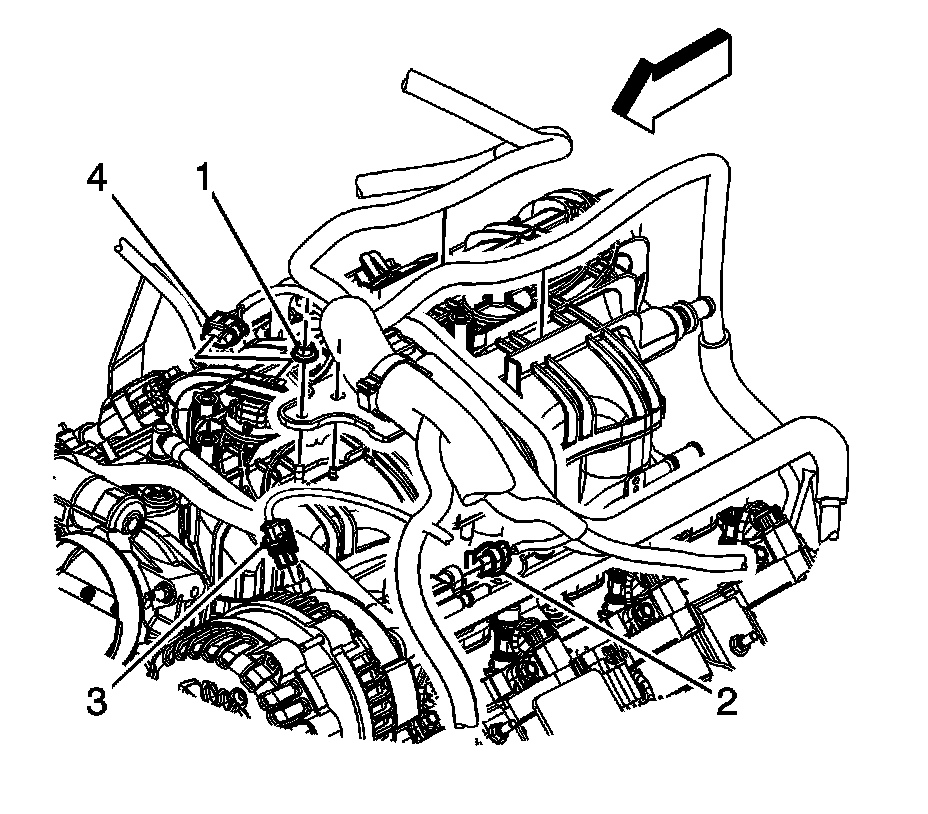

2. Disconnect the engine wiring harness electrical connector (4) from the manifold absolute pressure (MAP) sensor.




3. Remove the MAP sensor retainer.

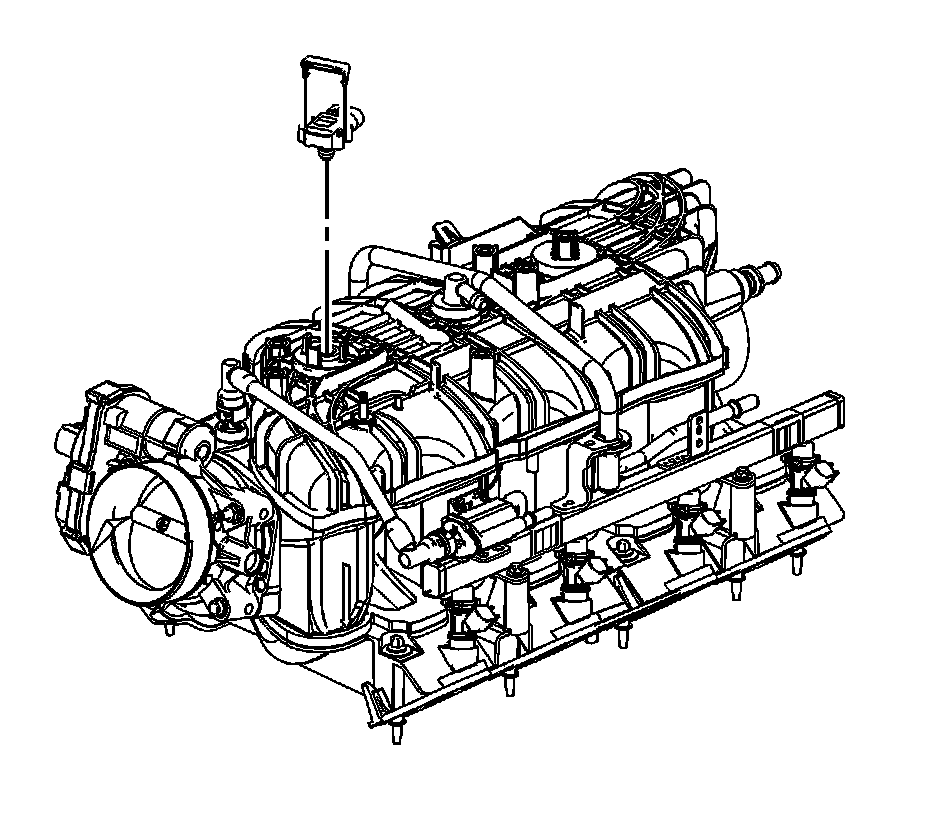

4. Remove the MAP sensor.

Installation Procedure

Important: Lightly coat the MAP sensor seal with clean engine oil before installing the sensor.





1. Install the MAP sensor.
2. Install the MAP sensor retainer.




3. Connect the engine harness wiring electrical connector (4) to the MAP sensor.
4. Install the intake manifold sight shield. Refer to Upper Intake Manifold Sight Shield Replacement Service and Repair.
