Oil Pressure Sensor: Locations

Powertrain Component Views

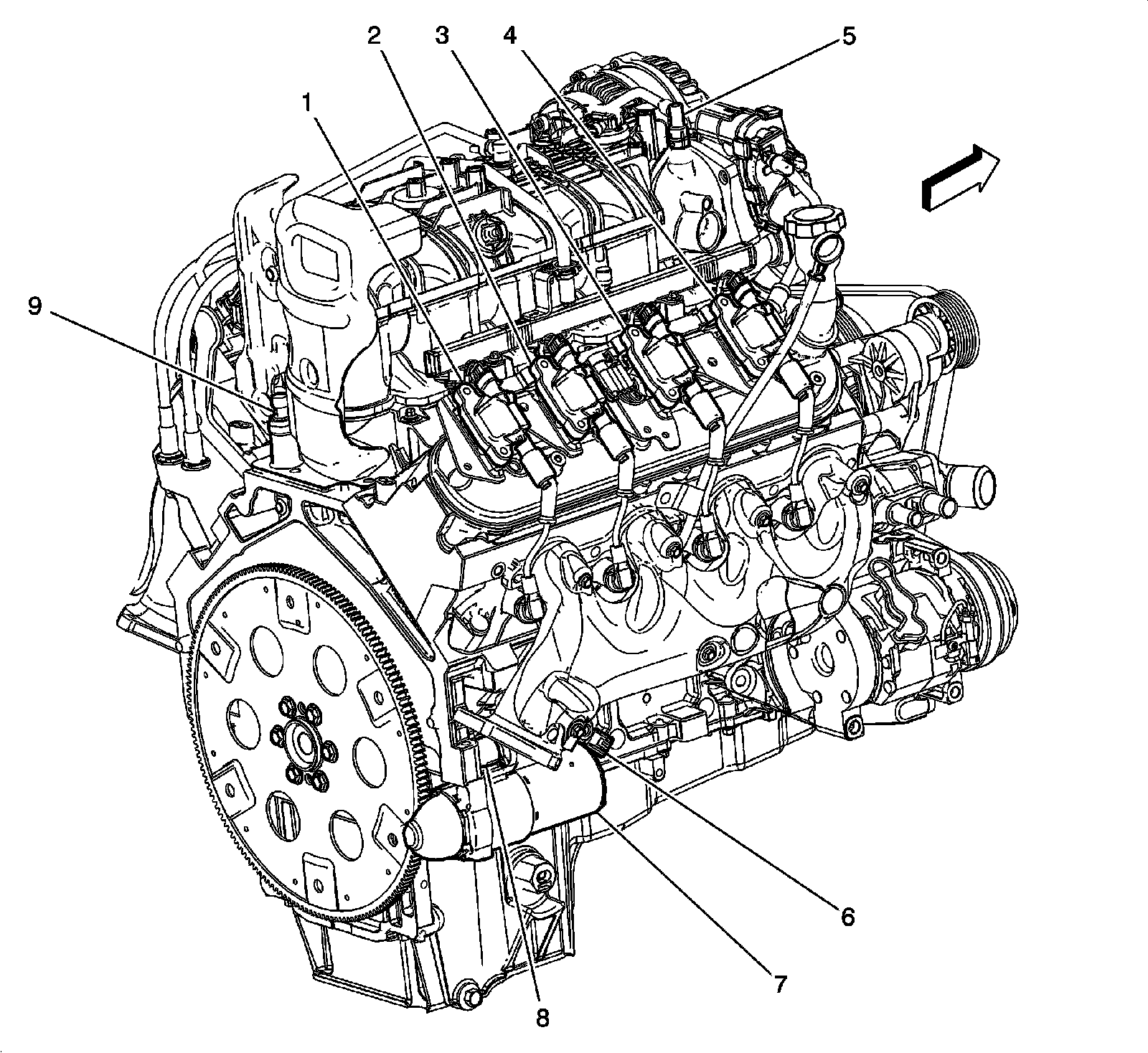

Rear and Right Side of Engine Components (except LZ1)




1 - Ignition Coil 8
2 - Ignition Coil 6
3 - Ignition Coil 4
4 - Ignition Coil 2
5 - PCV Valve
6 - Knock Sensor (KS) 2
7 - Starter Motor
8 - Crankshaft Postition (CKP) Sensor
9 - Engine Oil Pressure (EOP) Sensor
