Rear Object Sensors (UD7) Wiring Schematics

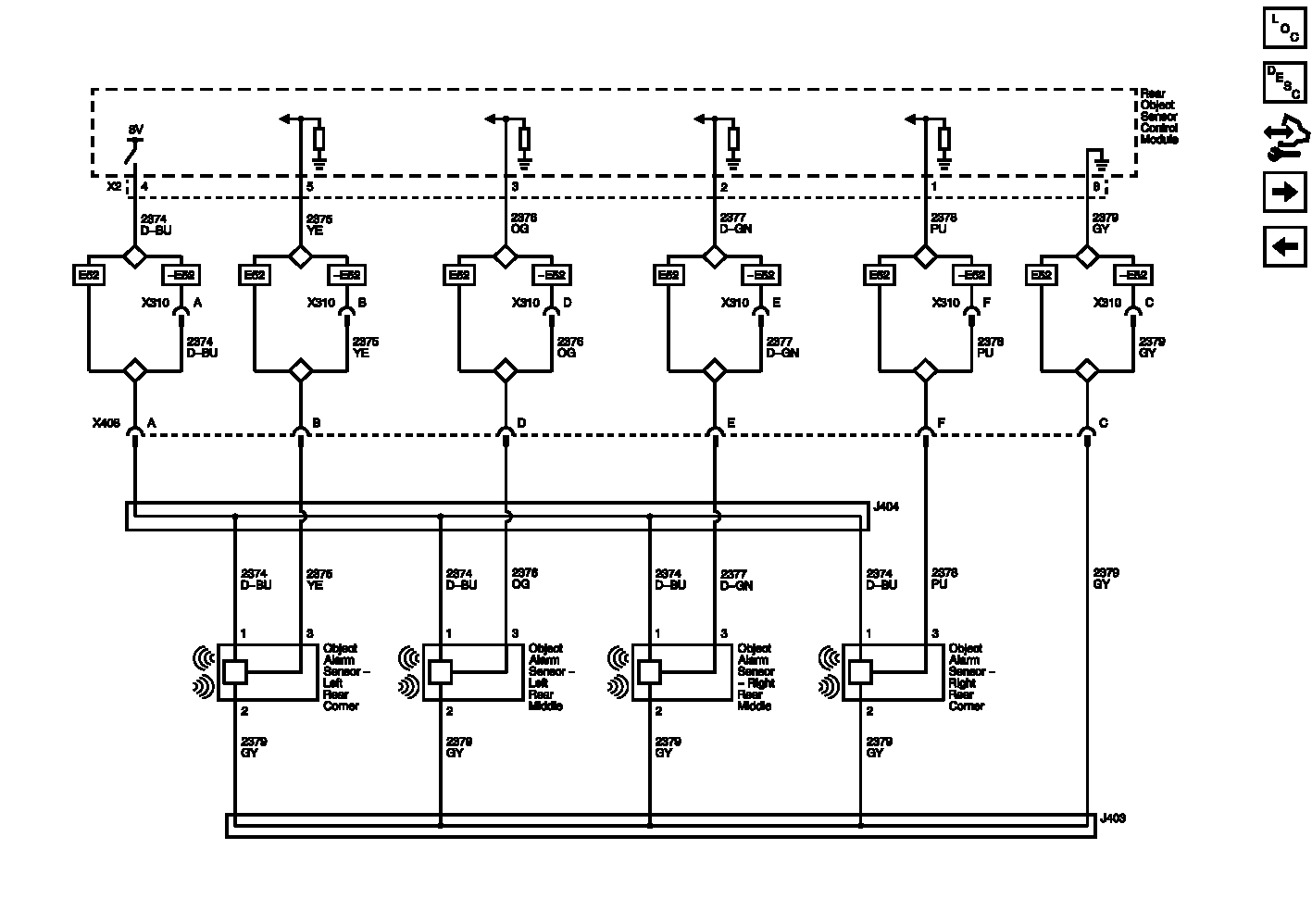

Fig 1: Rear Object Sensors (UD7) Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
