Electronic Brake Control Module Splash Shield Replacement

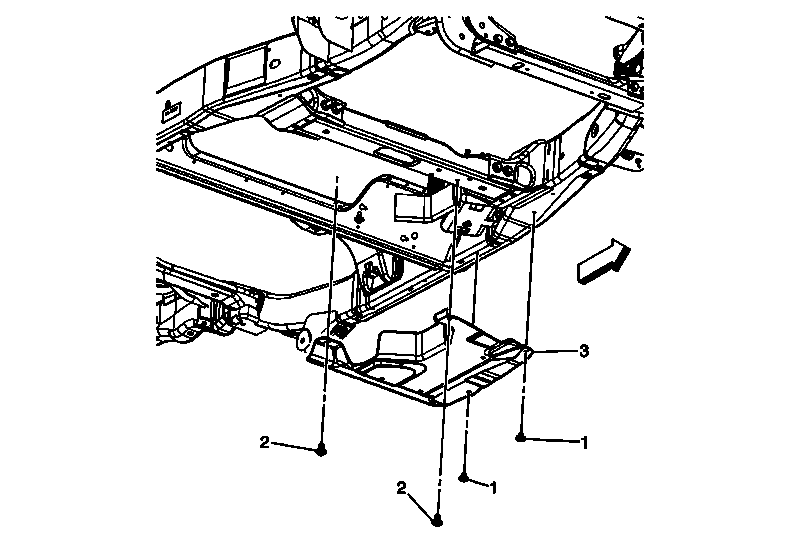

Fig 1: Identifying Electronic Brake Control Module Splash Shield & Retainers

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Electronic Brake Control Module Splash Shield Retainer (Qty: 2)
2	Electronic Brake Control Module Splash Shield Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 20 N.m (15 lb ft)
3	Electronic Brake Control Module Splash Shield
