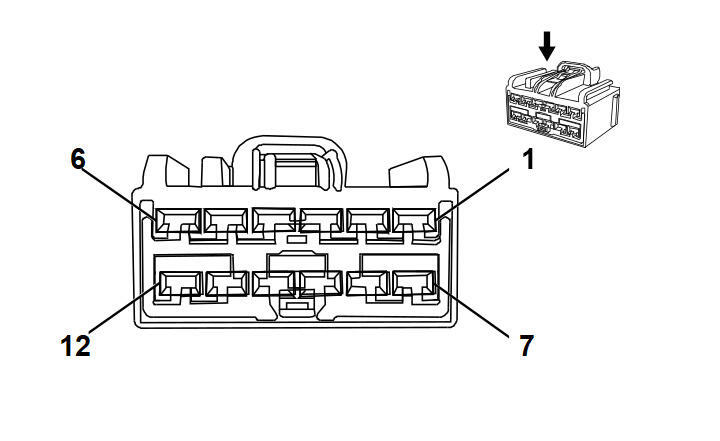

Accessory AC/DC Power Control Module (HP2)
 Courtesy of
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 10846814
- Service Connector: 13580444
- Description: 12-Way F 2.8 Kaizen Series (L-GY)
|
Terminal Part Information
- Pins: 2, 6, 7, 11, 12
- Terminated Lead: 13575838
- Release Tool: J-38125-11A
- Diagnostic Test Probe: J-35616-35 (VT)
- Terminal/Tray: 7116-4111-02/9
- Core/Insulation Crimp: Pins 2, 7, 12 - E/A
- Core/Insulation Crimp: Pins 6, 11 - C/A
- Pins: 10
- Terminated Lead: 13575838
- Release Tool: J-38125-12A
- Diagnostic Test Probe: J-35616-35 (VT)
- Terminal/Tray: 1326030-6/17
- Core/Insulation Crimp: E/2
|
Accessory AC/DC Power Control Module (HP2)
| Pin |
Wire |
Circuit |
Function |
| 1 |
- |
- |
Not Used |
| 2 |
0.8 BK |
5683 |
110 VAC + |
| 3-5 |
- |
- |
Not Used |
| 6 |
1 RD/WH |
4140 |
Battery Positive Voltage |
| 7 |
0.8 D-BU |
5685 |
110 VAC - |
| 8-9 |
- |
- |
Not Used |
| 10 |
0.5 BK |
1450 |
Ground |
| 11 |
1 BK |
1450 |
Ground |
| 12 |
0.8 WH |
6807 |
Plug Switch Signal |
