Left Side of Engine Compartment Components (HP2)

Left Side of Engine Compartment Components (HP2)

Component Name Callout
Fuse Block- Underhood 1
Battery 2
Fuse Block- Auxiliary 3
Engine Control Module (ECM) 4
Battery Current Sensor 5

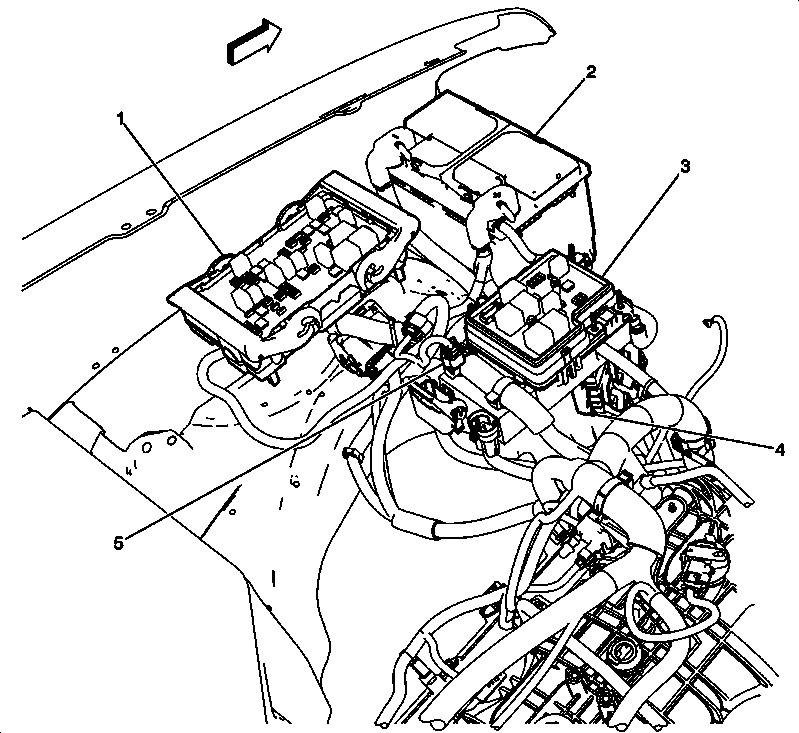

Fig 1: Engine Compartment - Left Front (HP2)
GM2108148Courtesy of GENERAL MOTORS COMPANY
