Driver and Passenger Seat Components (KB6)

Driver and Passenger Seat Components (KB6)

Component Name Callout
Seat Climate Control Module 1
Seat Cushion Ventilation Heating and Cooling Module- Passenger 2
Seat Back Ventilation Heating and Cooling Module- Passenger 3
Seat Back Ventilation Heating and Cooling Module- Driver 4
Seat Cushion Ventilation Heating and Cooling Module- Driver 5

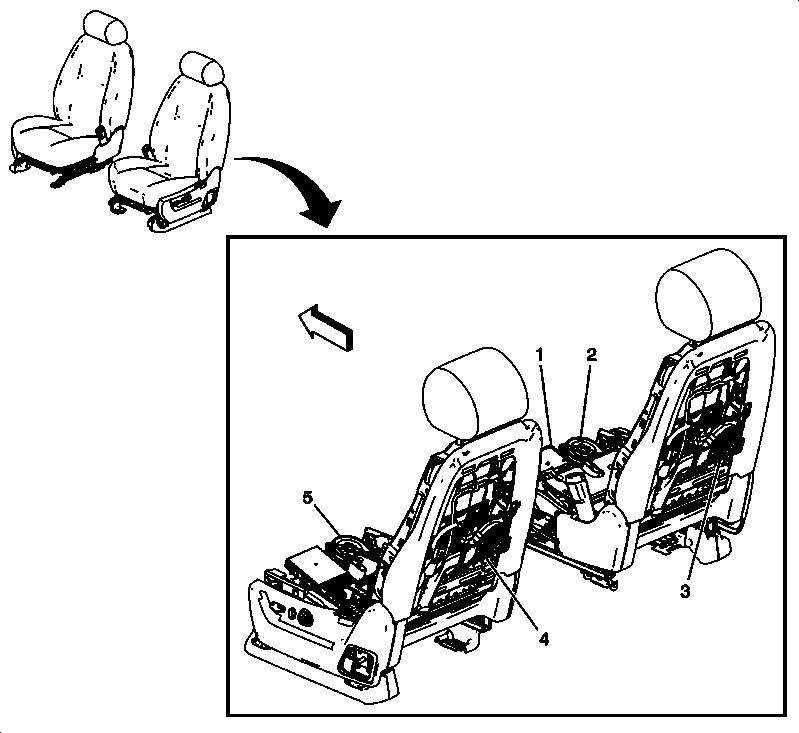

Fig 1: Driver and Passenger Seat Components (KB6 Only)
GM2048554Courtesy of GENERAL MOTORS COMPANY
