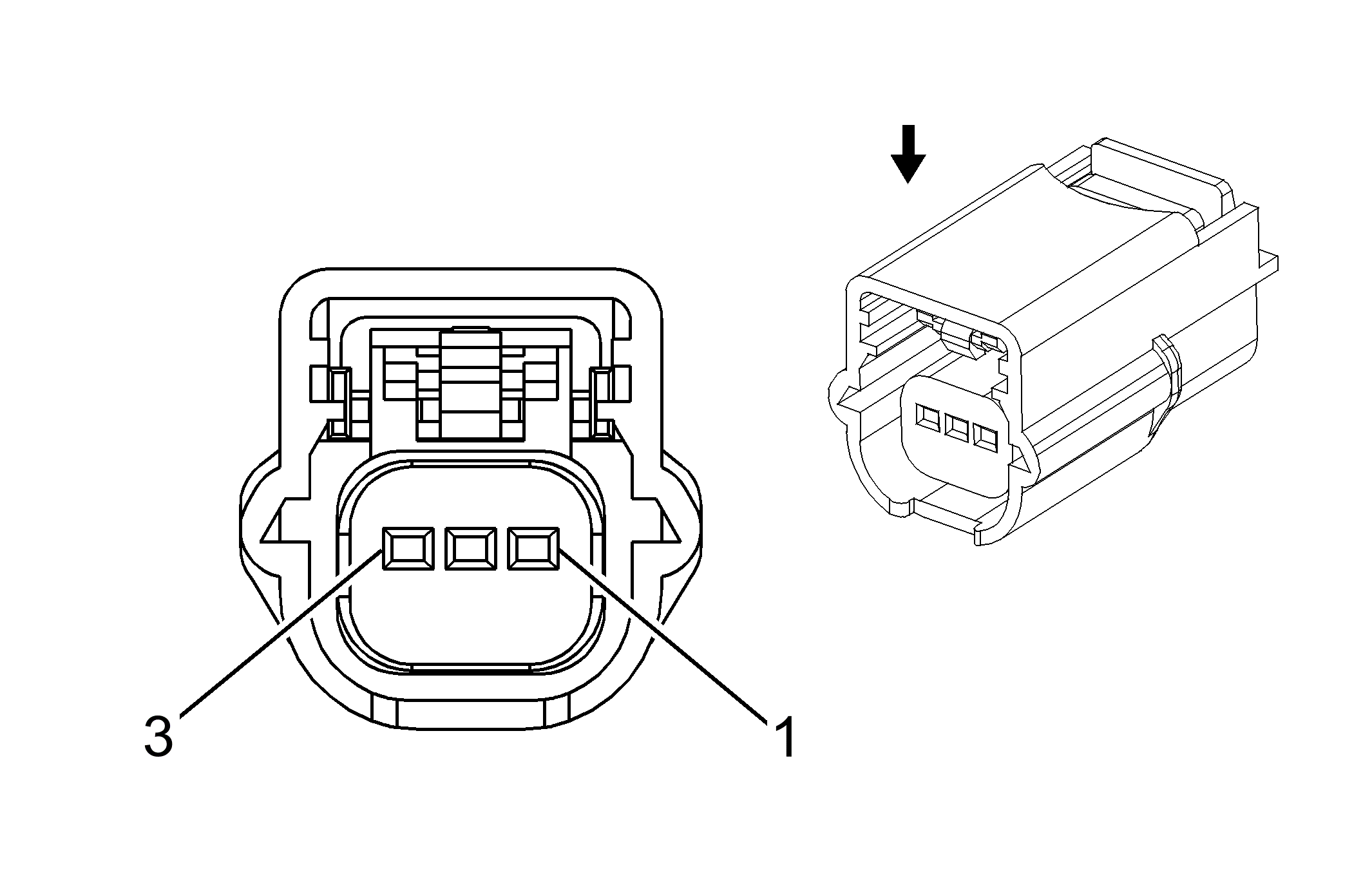

Tail/Stop Lamp- Left (X88 or Z88, with HP2)

GM1590157Courtesy of
Connector Part Information
  • Harness Type: Left Rear Lamp
  • OEM Connector: Not Available
  • Service Connector: Service by Harness- See Part Catalog
  • Description: 3-Way F Sealed (BK)
Terminal Part Information
  • Terminated Lead: Service by Harness- See Part Catalog
  • Release Tool: Not Available
  • Diagnostic Test Probe: Not Available
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
Tail/Stop Lamp- Left (X88 or Z88, with HP2)

Pin Wire Circuit Function
1 0.8 L-BU 20 Stop Lamp Control
2 0.8 BK 1750 Ground
3 0.8 BN 2509 Left Rear Park Lamps Control
