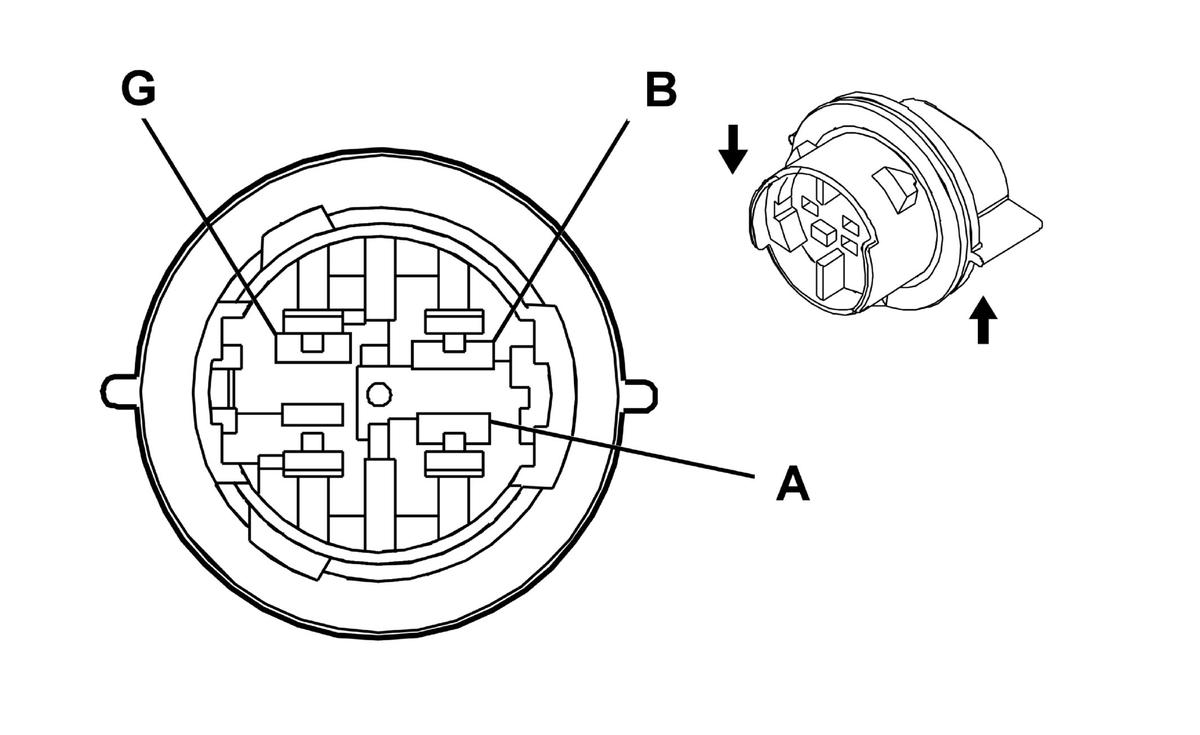

Tail/Turn Signal Lamp- Left (Z88 with E52)
 Courtesy of
|
Connector Part Information
- Harness Type: Left Tail Lamp
- OEM Connector: 16530670
- Service Connector: Service by Harness- See Part Catalog
- Description: 3-Way F, Sealed (BK)
|
Terminal Part Information
- Terminated Lead: Service by Harness- See Part Catalog
- Release Tool: Not Available
- Diagnostic Test Probe: Test Lamp
- Terminal/Tray: Not Available
- Core/Insulation Crimp: Not Available
|
Tail/Turn Signal Lamp- Left (Z88 with E52)
| Pin |
Wire |
Circuit |
Function |
| A |
0.8 YE/BK |
1334 |
Left Rear Turn Signal Lamps Supply Voltage |
| B |
0.8 BN |
2509 |
Left Rear Park Lamps Supply Voltage |
| 0.8 BN |
2509 |
Left Rear Park Lamps Supply Voltage |
| G |
0.8 BK |
1750 |
Ground |
| 0.8 BK |
1750 |
Ground |
