Rear Side Door Window Switch Replacement

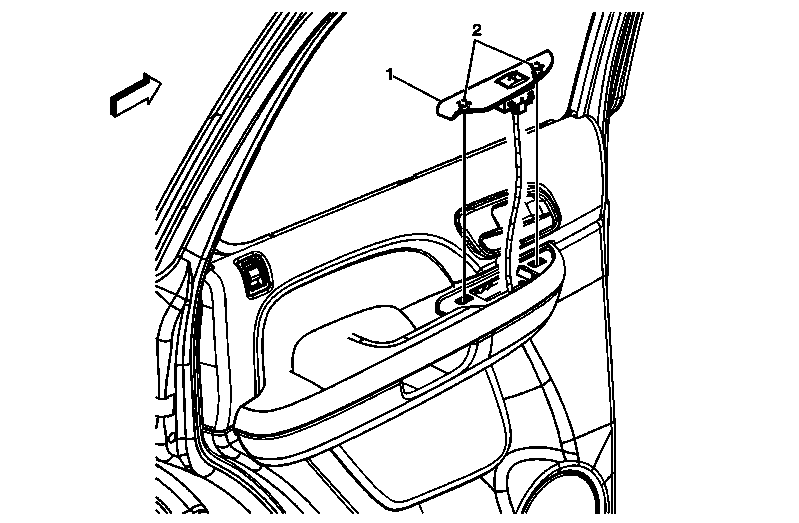

Fig 1: View Of Rear Side Door Window Switch Assembly & Clips
GM1659127Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Window Switch Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Rear Side Door Window Switch Assembly
TIP:  Disconnect electrical connectors.
2 Rear Side Door Window Switch Integral Clips (Qty: 2)
