Module Power, Ground, Serial Data, and Memory Switch (AN3)Wiring Schematics

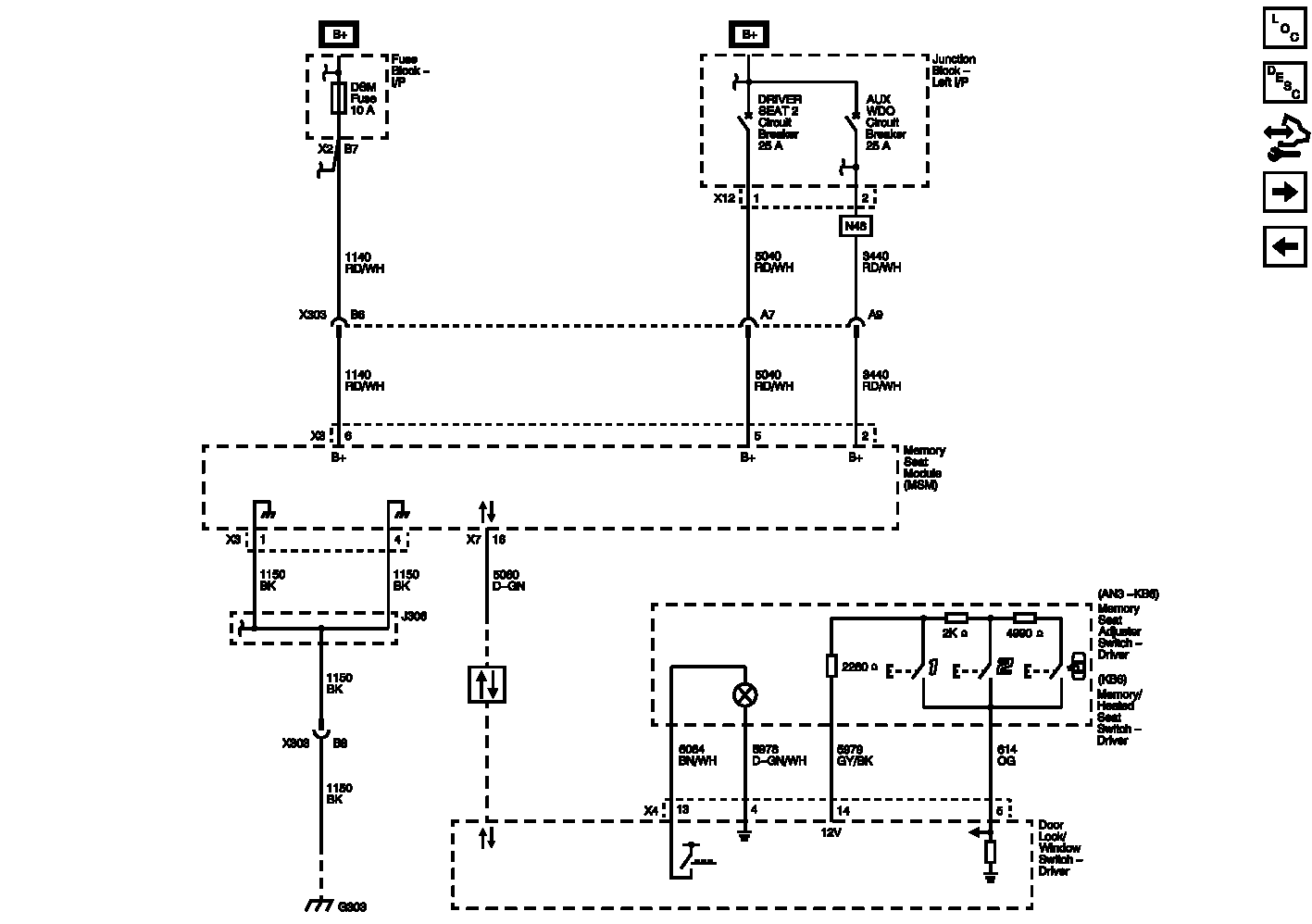

Fig 1: Module Power, Ground, Serial Data, and Memory Switch (AN3)Wiring Schematics
GM2640830Courtesy of GENERAL MOTORS COMPANY
