Vehicle Access and Wiper References Wiring Schematics

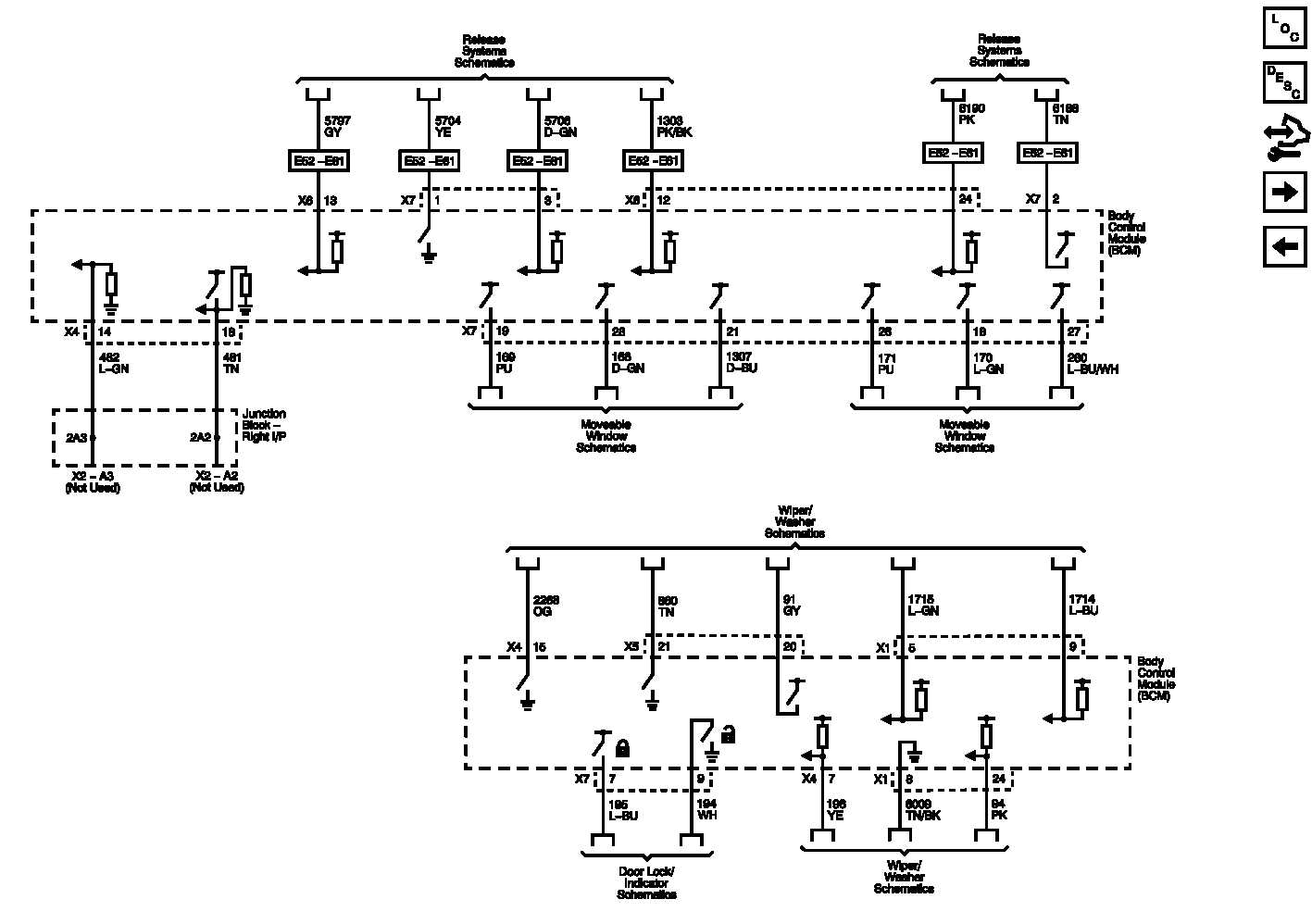

Fig 1: Vehicle Access and Wiper References Wiring Schematics
GM2643821Courtesy of GENERAL MOTORS COMPANY
