Windshield Outside Moisture Sensor Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

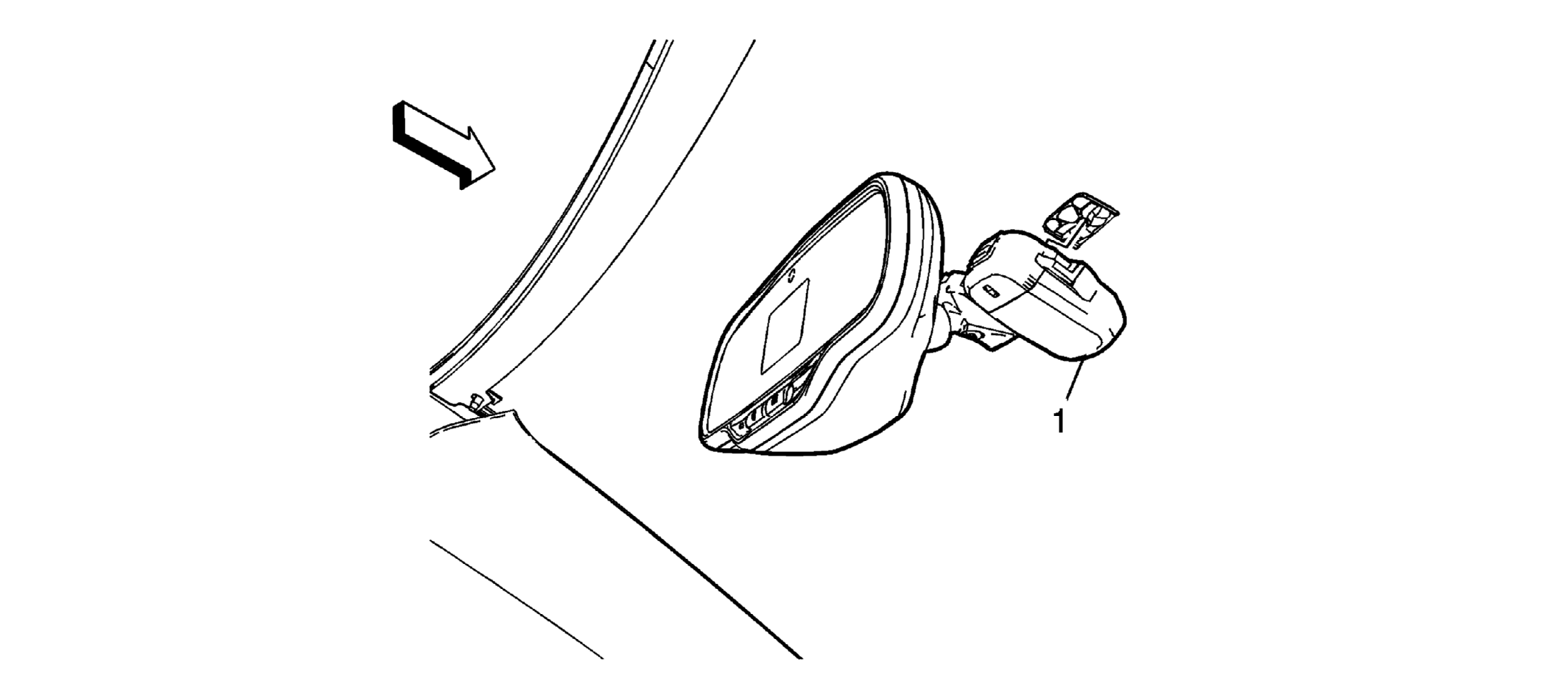

Fig 1: Windshield Outside Moisture Sensor Replacement
GM1978272Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedure

  1. Slide upward the plastic mirror harness cover.
  2. Disconnect the electrical connector at the top side of the windshield outside moisture sensor.
2 Windshield Outside Moisture Sensor Assembly

Procedure

  1. Pinch the tabs on both outer edges of the moisture sensor.
  2. Push the sensor upward from the windshield base.
  3. Remove the sensor from the vehicle.
