Inside Rearview Mirror Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

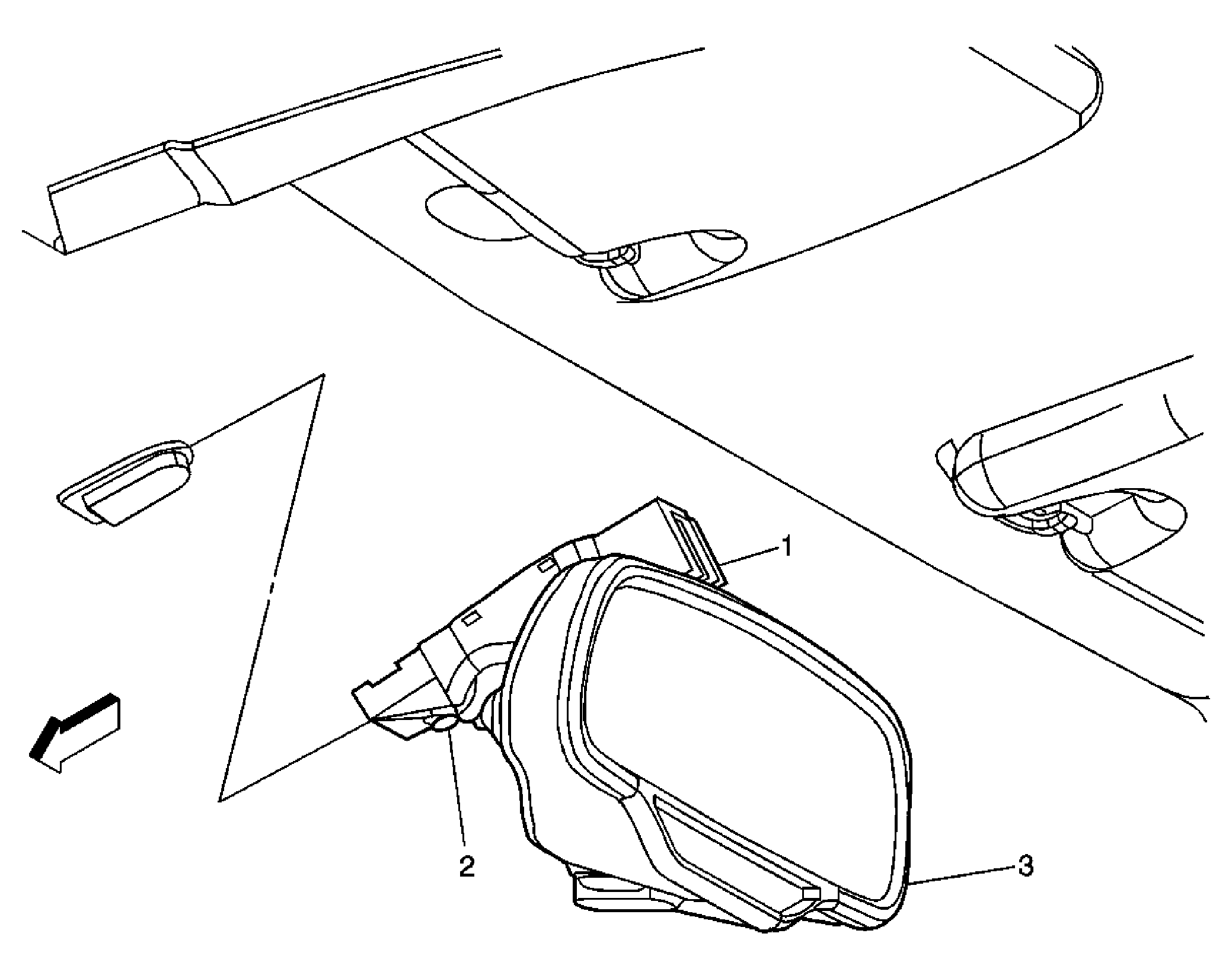

Fig 1: Inside Rearview Mirror Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rearview Mirror Support Wire Cover
2	Rearview Mirror Support Screw NOTE: Refer to Fastener Notice . Procedure Disconnect the electrical connector from the mirror. Adjust the mirror to the full upward position. Loosen the screw in order to remove the mirror from the button assembly. Slide the mirror assembly in an upward motion in order to remove. Tighten: 1.8 N.m(16 lb in).
3	Rearview Mirror Procedure Position the center bottom of the mirror mount against the windshield at the top of the support button. Slide the base of the mirror onto the button. Refer to Control Module References for programming and setup information.

Callout

Component Name

Rearview Mirror Support Wire Cover

Rearview Mirror Support Screw

NOTE: Refer to Fastener Notice .

Procedure

Disconnect the electrical connector from the mirror.
Adjust the mirror to the full upward position.
Loosen the screw in order to remove the mirror from the button assembly.
Slide the mirror assembly in an upward motion in order to remove.

Tighten: 1.8 N.m(16 lb in).

Rearview Mirror

Procedure

Position the center bottom of the mirror mount against the windshield at the top of the support button.
Slide the base of the mirror onto the button.
Refer to Control Module References for programming and setup information.
