Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

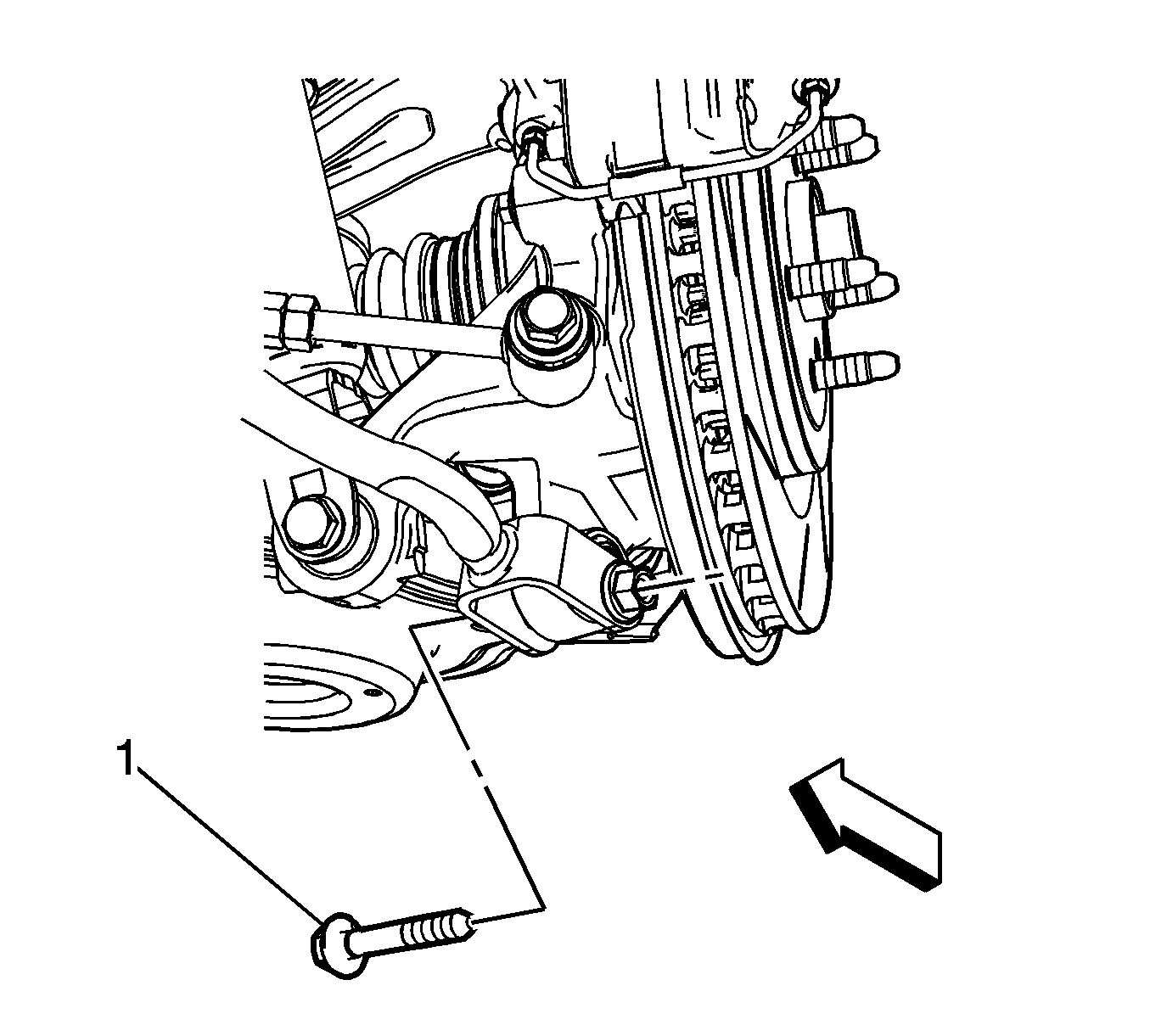

Fig 1: View of Trailing Arm Assembly

Courtesy of GENERAL MOTORS CORP.

Install the trailing arm in the following manner:
1. Position the trailing arm in the mounting bracket.
2. Position trailing arm on the knuckle.
Install the trailing arm bolt (1).

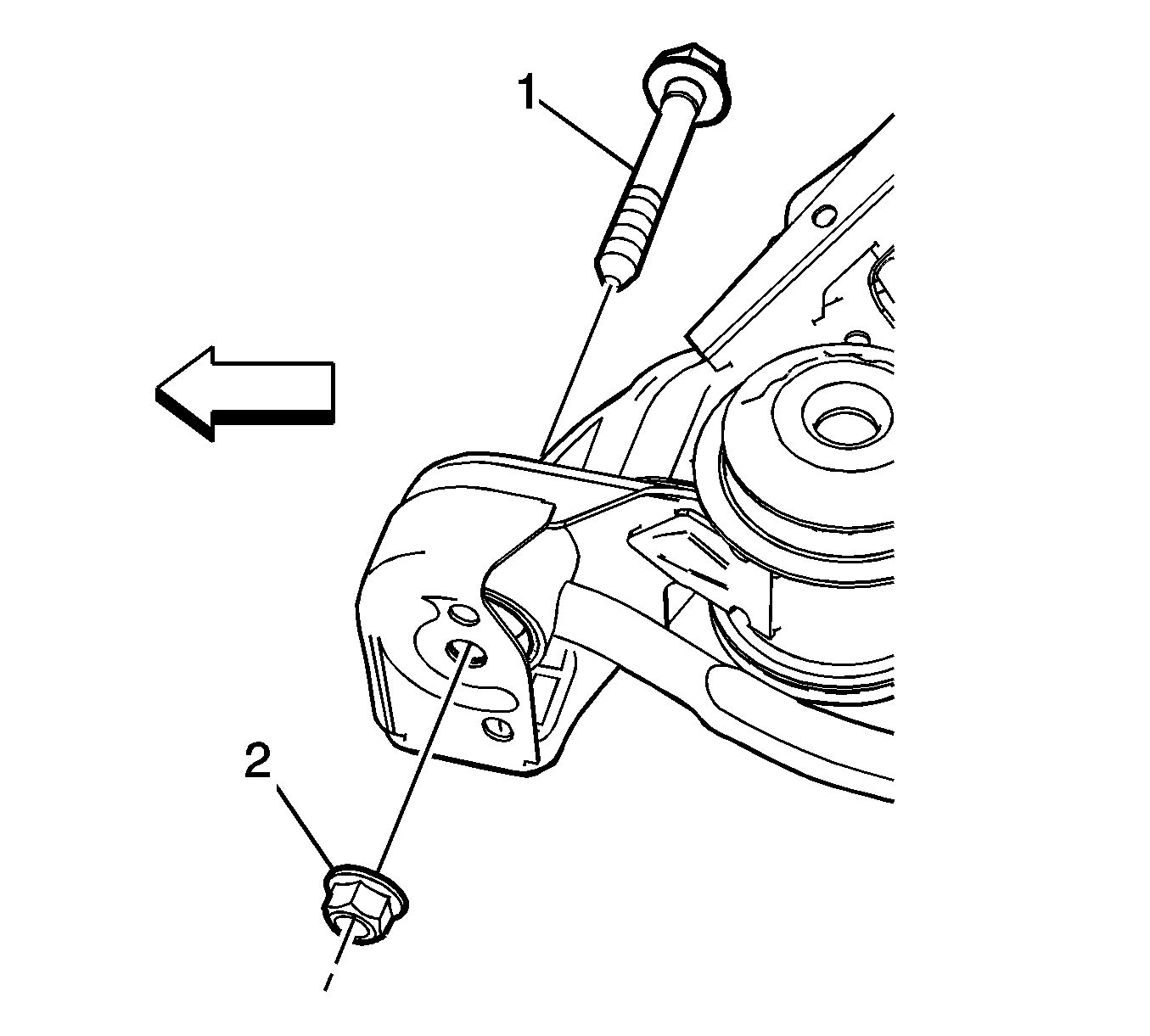

Fig 2: Identifying Trailing Arm Assembly with Bolt

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the front trailing arm nut (2).
Tighten: Tighten the front trailing arm nut (2) to 150 N.m (111 lb ft).
Install the front mounting bolts for the rear suspension support. Refer to Rear Frame Replacement .

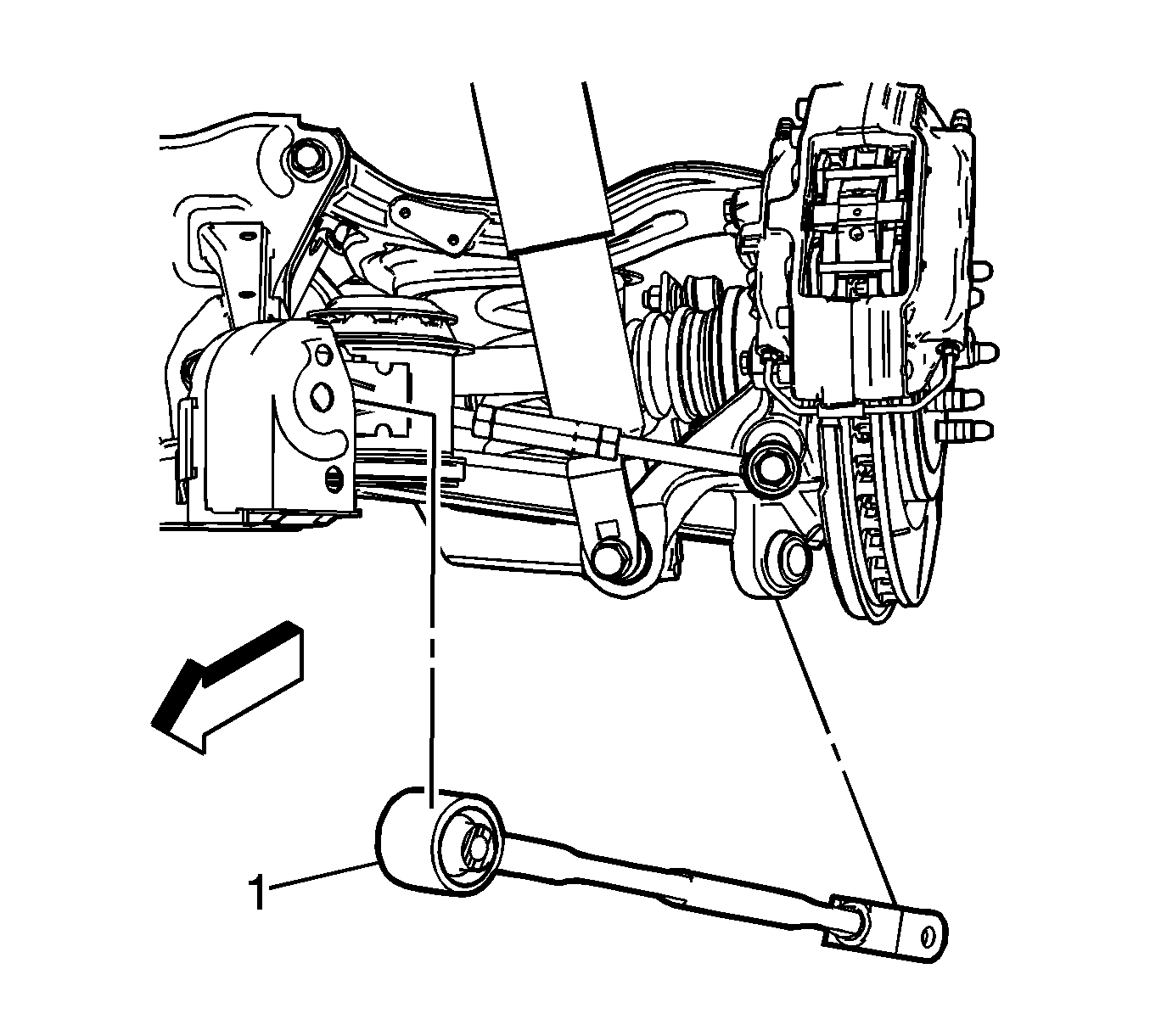

Fig 3: View of Applying Nut and Bolt to Trailing Arm

Courtesy of GENERAL MOTORS CORP.

Install the rear trailing arm nut (2) and bolt (1).
Tighten: Tighten the trailing arm bolt (1) to 170 N.m (125 lb ft).
Install the tire and wheel. Refer to Tire and Wheel Removal and Installation .
Remove the support from the vehicle.
Lower the vehicle.
Check the alignment of the rear suspension. Refer to Wheel Alignment Specifications .
