Auxiliary Audio Jack X1

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

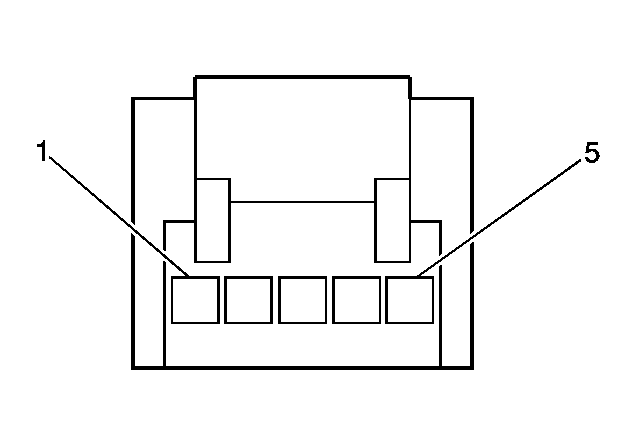

Fig 1: Auxiliary Audio Jack X1 Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	0.35 BARE	5842	Auxiliary Audio Screen (2)
2	0.35 D-BU	5843	Auxiliary Audio Common Signal
3	0.35 L-GN	5839	Left Auxiliary Audio Signal (2)
4	0.35 D-GN/WH	5841	Right Auxiliary Audio Signal (2)
5	0.35 PNK	2060	Auxiliary Detection Signal (UQA)

Connector Part Information

OEM: X30583-AA60
Service: See Catalog
Description: 5-Way F (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit
