Cooling Fan - Left

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

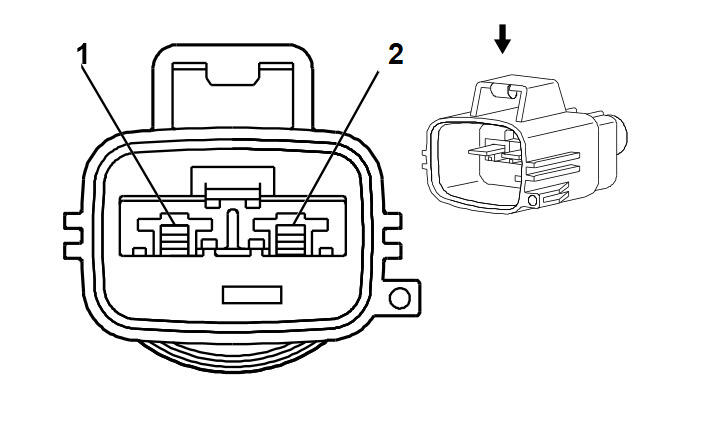

Fig 1: Cooling Fan - Left Connector End View

Courtesy of GENERAL MOTORS CORP.

Cooling Fan - Left

Pin	Wire	Circuit	Function
1	3 L-BU	409	Cooling Fan Motor Supply Voltage
2	3 BK	250	Ground

Connector Part Information

OEM: 7282-5596-10
Service: 88953304
Description: 2-Way M 6.3 Series Weather Pack (D-GY)

Terminal Part Information

Terminal/Tray: 7114-4142-02/10
Core/Insulation Crimp: A/3
Release Tool/Test Probe: 12094430/J-35616-43 (RD)
