Evaporator Temperature Sensor

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

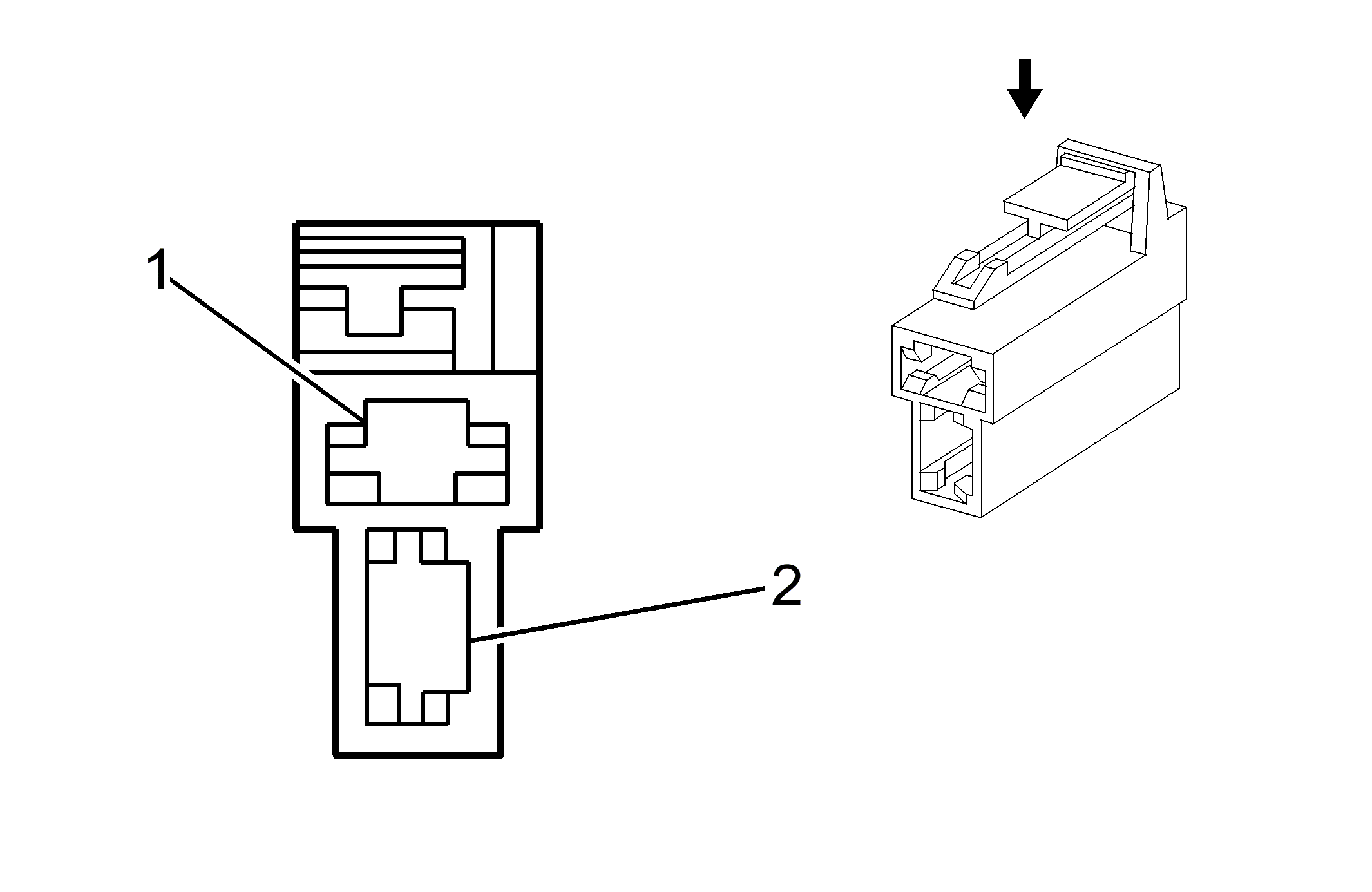

Fig 1: Evaporator Temperature Sensor Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	0.35 PK/BK	2262	A/C Orifice Solenoid Supply Voltage
2	0.35 YE	61	Low Reference

Connector Part Information

OEM: 7123-2820
Service: See Catalog
Description: 2-Way F (N/A)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit
