Inflatable Restraint Front Passenger Presence System (PPS) Sensor

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

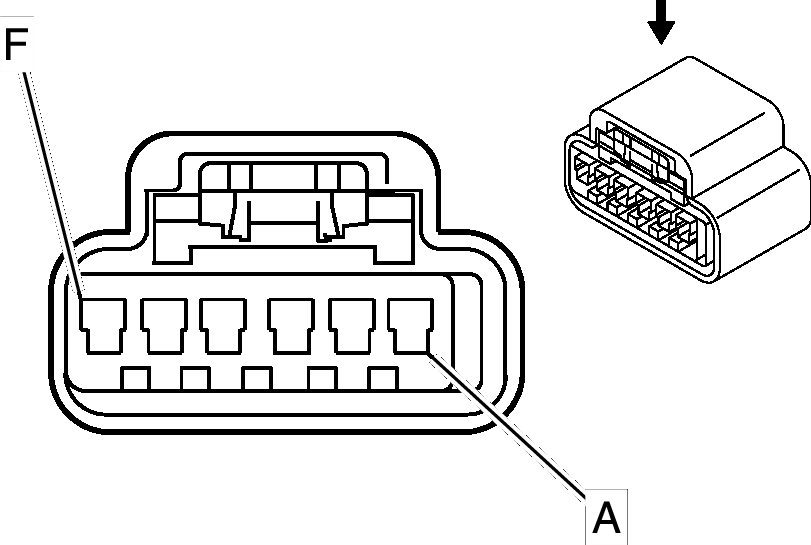

Fig 1: Inflatable Restraint Front Passenger Presence System (PPS) Sensor Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
A	0.35 OG	1740	Battery Positive Voltage
B	0.35 D-GN	5060	Low Speed GMLAN Serial Data
C	-	-	Not Used
D	0.35 BK/WH	451	Ground
E-F	-	-	Not Used

Connector Part Information

OEM: 15332141
Service: See Catalog
Description: 6-Way F (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit
