Inflatable Restraint I/P Module

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

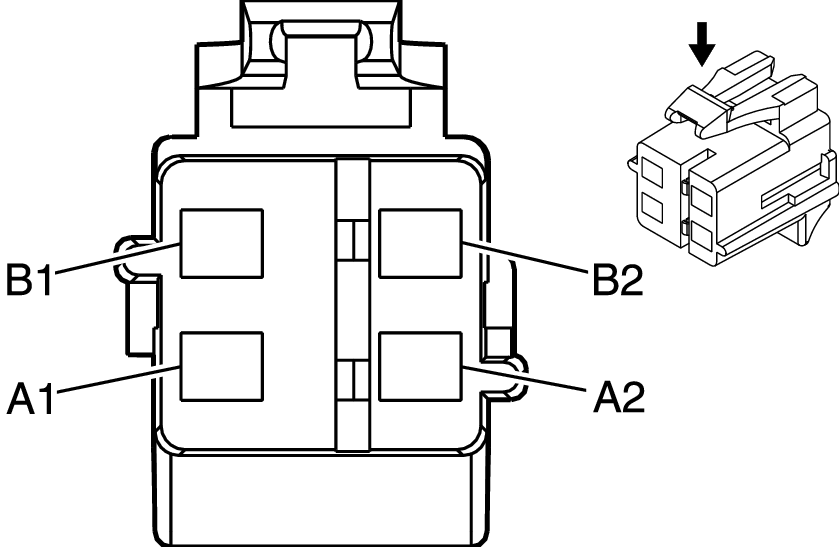

Fig 1: Inflatable Restraint I/P Module Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
A1	0.35 YE	3025	I/P Module - Stage 1 - High Control
A2	0.35 OG	3024	I/P Module - Stage 1 - Low Control
B1	0.35 GY	3027	I/P Module - Stage 2 - High Control
B2	0.35 PU	3026	I/P Module - Stage 2 - Low Control

Connector Part Information

OEM: 15336479
Service: See Catalog
Description: 4-Way M Metri-Pack 280 Series (YE)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit
