Lumbar Horizontal Motor - Passenger (AL2)

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

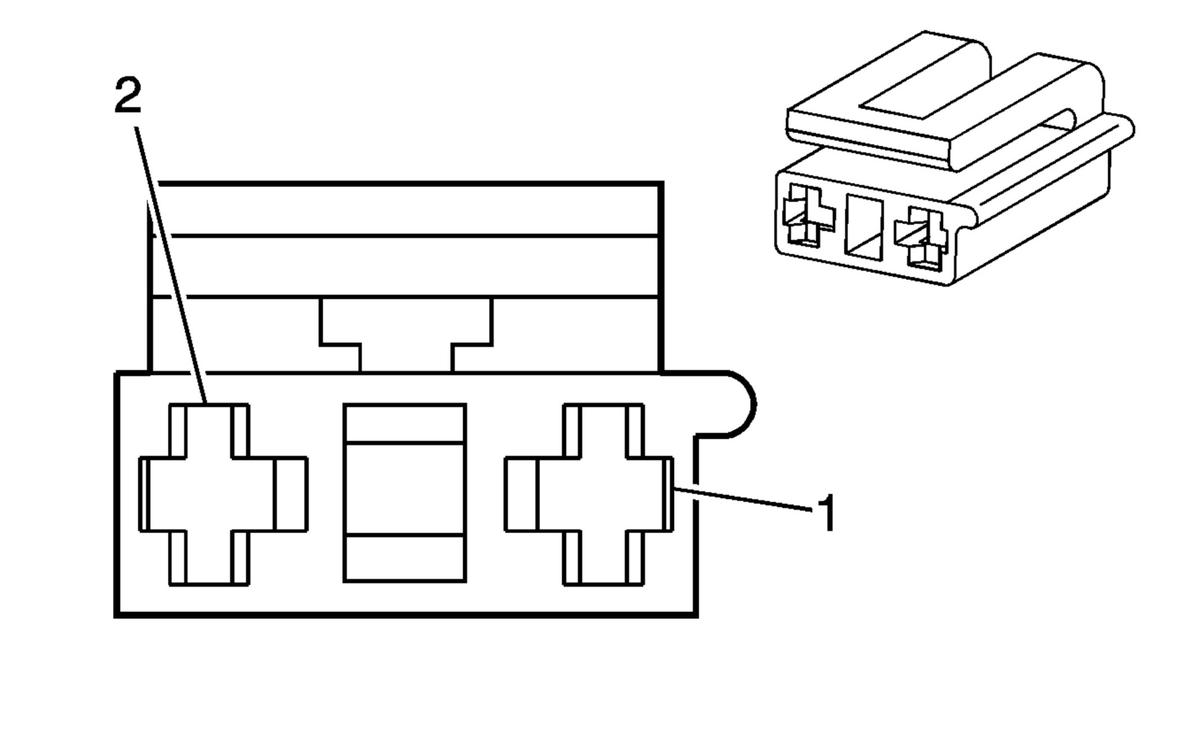

Fig 1: Seat Horizontal Motor - Passenger (AL2) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	3 D-BU	211	Passenger Seat Lumbar Motor Forward Control
2	3 WH	210	Passenger Seat Lumbar Motor Rearward Control

Connector Part Information

OEM: 12129494
Service: See Catalog
Description: 2-Way F (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit
