Recirculation Actuator

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

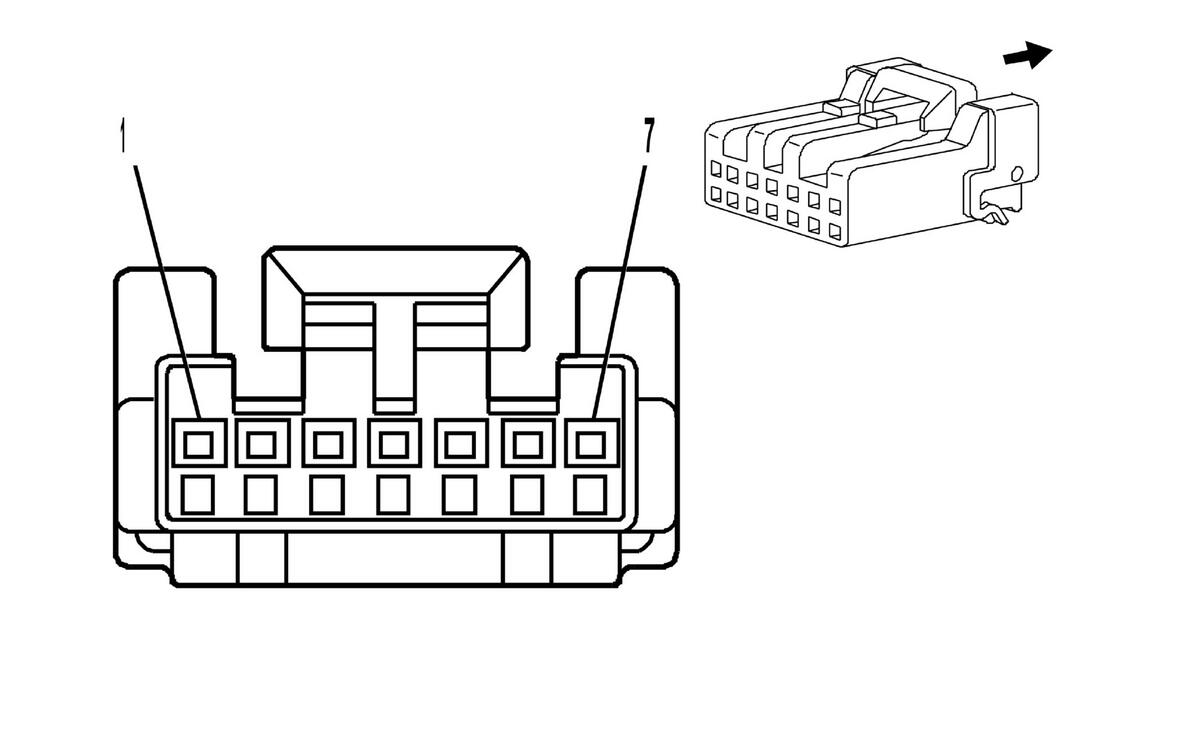

Fig 1: Recirculation Actuator Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	0.35 YE	61	Low Reference
2	-	-	Not Used
3	0.35 GY	605	5-Volt Reference
4	-	-	Not Used
5	0.35 PU	1838	Recirculation Door Position Signal
6	0.35 TN/BK	2274	Recirculation Door Control Circuit
7	0.35 D-GN	1614	Recirculation Door Control

Connector Part Information

OEM: IL-AG5-7S-s3C1
Service: See Catalog
Description: 7-Way F IL-AG5 Series (GN)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit
