Sunroof Shade Module (C3U)

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

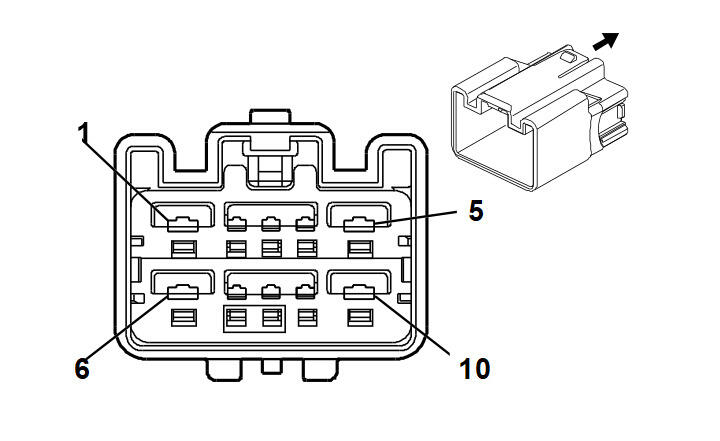

Fig 1: Sunroof Shade Module (C3U) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	0.35 BK	1050	Ground
2	-	-	Not Used
3	0.35 D-GN	801	RAP Fuse Supply Voltage
4	-	-	Not Used
5	0.35 PU	5032	Sunroof Switch - Data 6
6	1 OG	3240	Battery Positive Voltage
7	0.35 D-GN/WH	7006	Inter Device Dedicated Bus Serial Data
8-9	-	-	Not Used
10	0.35 TN	5030	Sunroof Switch - Data 4

Connector Part Information

OEM: 7282-6459-40
Service: See Catalog
Description: 10-Way F (L-GY)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit
