Traffic Information Receiver (U2X)

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

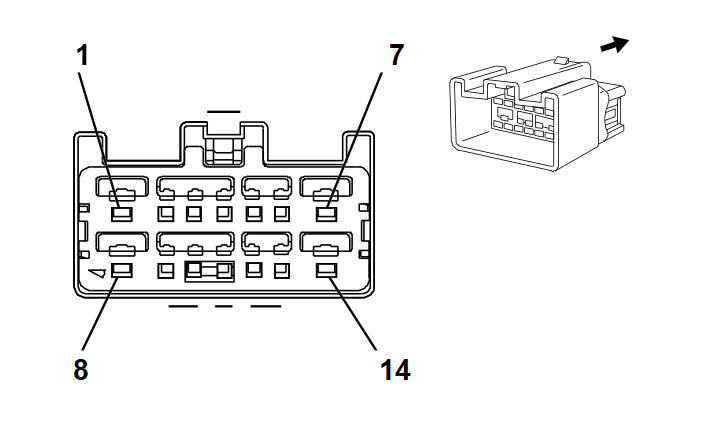

Fig 1: Traffic Information Receiver (U2X) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	0.35 BARE	1782	Drain Wire
2	0.35 GY	-	COAX
3	0.35 BN	-	COAX
4	0.35 YE	-	COAX
5	-	-	Not Used
6	0.35 YE	-	COAX

Connector Part Information

OEM: 7283-6454-40
Service: See Catalog
Description: 6-Way F (L-GY)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit
