Transfer Case Clutch X1 (MX7)

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

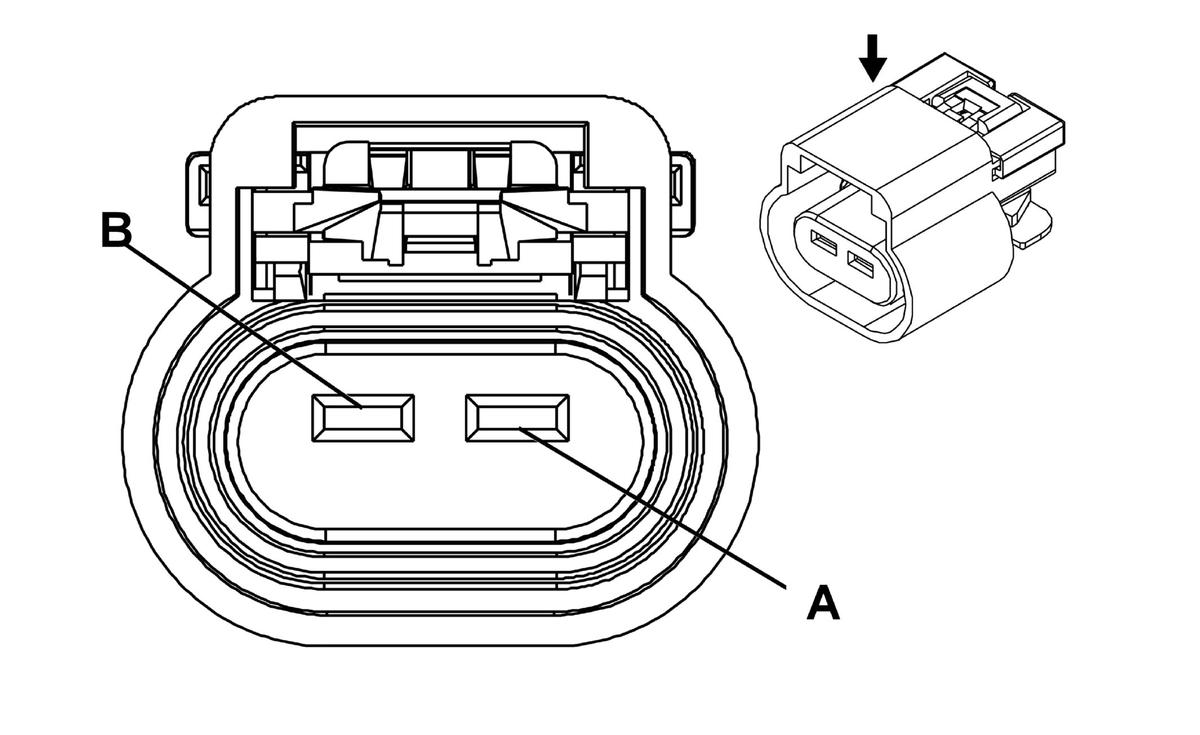

Fig 1: Transfer Case Clutch X1 (MX7) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
A	1 YE/WH	7483	Clutch Coil Control
B	1 YE/BK	7482	Clutch Coil Return

Connector Part Information

OEM: 15326677
Service: See Catalog
Description: 2-Way F GT 280 Series, Sealed (BK)

Terminal Part Information

Terminal/Tray: 15304719/19
Core/Insulation Crimp: 2/5
Release Tool/Test Probe: 15315247/J-35616-4A (PU)
